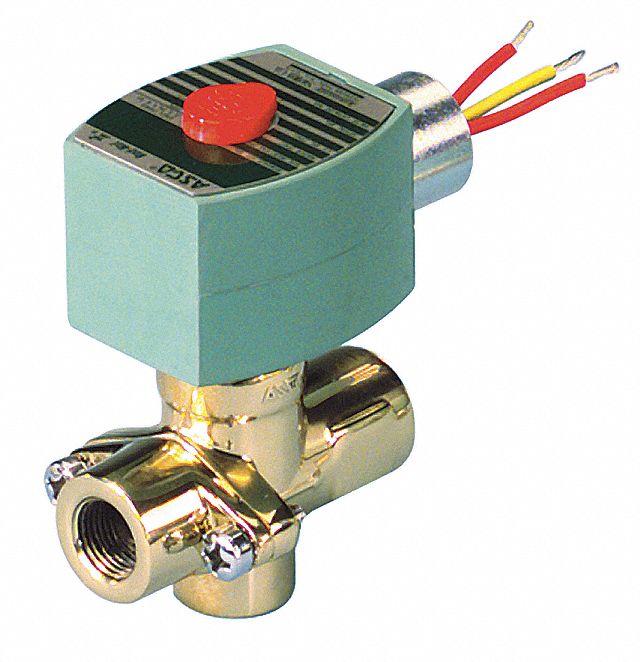

Redhat Steam Solenoid Valve, 2-Way/2-Position Valve Design, Normally Open Valve Configuration - 8267G011

RedhatSKU: C1936001
MPN : 8267G011
Weight : 2.2 lb

filler

Price:
$508.32 $819.87

Availability : Usually Ships in 10 Business Days

Steam Solenoid Valve; Solenoid Valve Product Group: Steam Solenoid Valve; Valve Ways and Positions: 2-Way/2-Position; Valve Configuration: Normally Open; Media - Valves: Steam; Pipe Size - Valves: 3/8 in; Min. Operating Pressure Differential: 0 psi; Max. Operating Pressure Differential Steam: 30 psi; Environmental Rating - Valves: Indoor, Outdoor; Voltage: 120V AC; Coefficient of Volume: 5.1; Body Material - Valves: Brass; Coil Insulation Class: H; Orifice Dia.: 3/8 in; NEMA Rating: 1, 2, 3, 3S, 4, 4X; Coil Enclosure: Watertight No Junction Box; Max. Fluid Temp. Steam: 280 Degrees F; Electrical Connections: 1/2 in Conduit w/18 in Leads; Watts: 16.1 W; Ambient Temp. Range: 125 Degrees F; Hz: 60; Overall Length: 3 27/64 in; Overall Width: 2 1/16 in; Overall Height: 4 5/16 in; Center Line Pipe Center Size: 3 21/64 in

ItemSteam Solenoid Valve
Solenoid Valve Product GroupSteam Solenoid Valve
Valve Ways and Positions2-Way/2-Position
Valve ConfigurationNormally Open
Media - ValvesSteam
Pipe Size - Valves3/8 in
Min. Operating Pressure Differential0 psi
Max. Operating Pressure Differential Steam30 psi
Environmental Rating - ValvesIndoor, Outdoor
Voltage120V AC
Coefficient of Volume5.1
Body Material - ValvesBrass
Coil Insulation ClassH
Orifice Dia.3/8 in
NEMA Rating1, 2, 3, 3S, 4, 4X
Coil EnclosureWatertight No Junction Box
Max. Fluid Temp. Steam280 Degrees F
Electrical Connections1/2 in Conduit w/18 in Leads
Watts16.1 W
Ambient Temp. Range125 Degrees F
Hz60
Overall Length3 27/64 in
Overall Width2 1/16 in
Overall Height4 5/16 in
Center Line Pipe Center Size3 21/64 in
