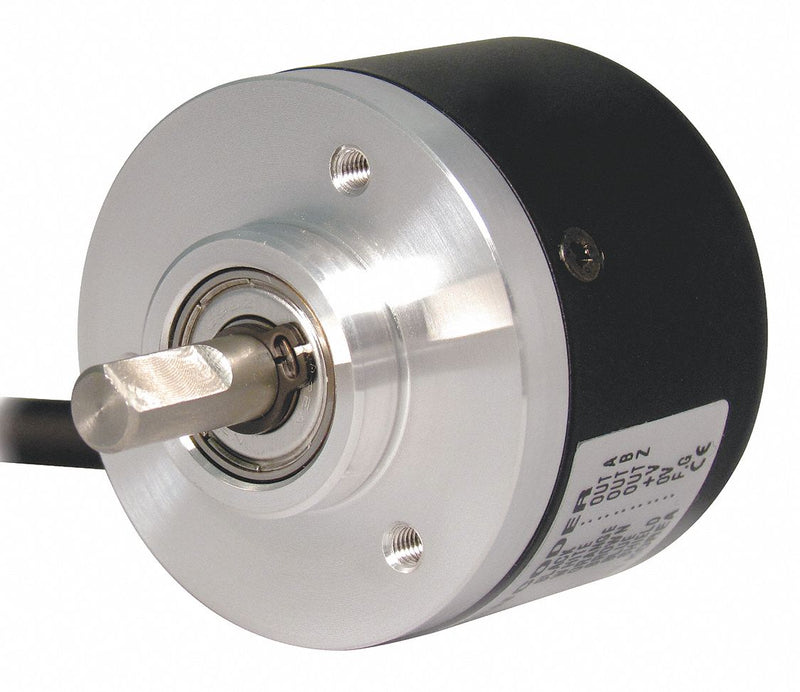

Autonics NPN Open Collector Output Type, Encoder, Shaft,Shaft Dia., 100 Pulses per Revolution - E40S6-100-3-N-24-C

AutonicsSKU: C1541278
MPN : E40S6-100-3-N-24-C
Weight : 1.0 lb

filler

Price:
$578.89 $705.96

Availability : Usually Ships in 1-3 Business Days

Rotary encoder converts shaft rotation into electronic pulses to electronically monitor the position of a rotating shaft. A control unit evaluates encoder output to determine machine position and velocity, and provide high accuracy and flexibility in motion control. Encoder helps boost productivity by increasing system speeds and accuracy, and decreasing cycle times. For use in applications that require monitoring of acceleration, direction, rotation rate, and speed. Can be used in computer input devices, industrial controls, and robotics.

ItemEncoder, Shaft
OutputA, B, Z
InterfaceParallel
Output TypeNPN Open Collector
Power Supply12-24V DC
Shaft TypeExternal, 15 mm
Shaft Dia.6 mm
Pulses per Revolution100
Starting TorqueMax. 40 gf cm
Rotor InertiaMax.40 g cm2
Max. RPM5,000 RPM
Cable Length250 mm
Cable ConnectionM17 6 Pin QD
Cable EntrySide
Diameter40 mm
Depth51 mm
StandardsCE
Includes6mm Coupling and Hole Type Bracket
