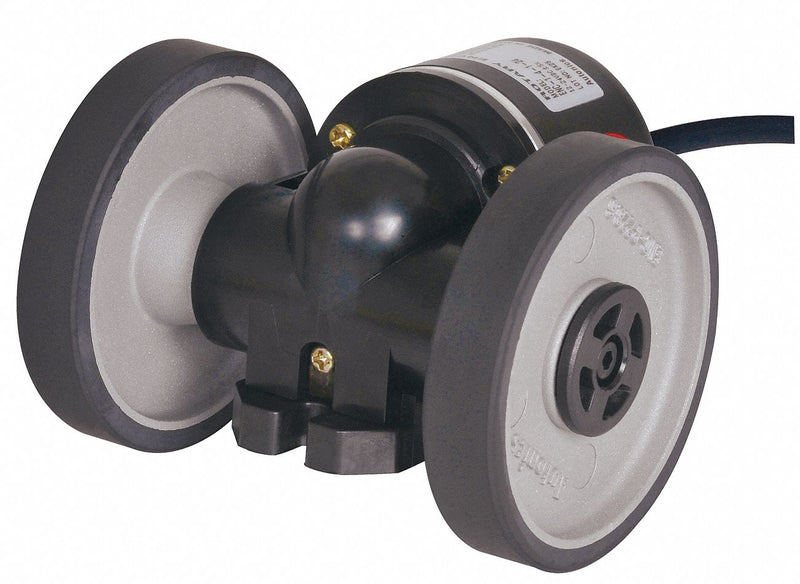

Autonics Totem Pole Output Type, Encoder, Wheel, Dayton 4VAC5D Pulses per Revolution - ENC-1-6-T-24-C

AutonicsSKU: C1541316
MPN : ENC-1-6-T-24-C
Weight : 1.3 lb
filler

Price:
$464.20 $566.10

Availability : Usually Ships in 1-3 Business Days

Rotary encoder converts shaft rotation into electronic pulses to electronically monitor the position of a rotating shaft. A control unit evaluates encoder output to determine machine position and velocity, and provide high accuracy and flexibility in motion control. Encoder helps boost productivity by increasing system speeds and accuracy, and decreasing cycle times. For use in applications that require monitoring of acceleration, direction, rotation rate, and speed. Can be used in computer input devices, industrial controls, and robotics.

ItemEncoder, Wheel
OutputA, B
InterfaceParallel
Output TypeTotem Pole
Power Supply12-24V DC
Pulses per RevolutionDayton 4VAC5D
Max. RPM5,000 RPM
Cable Length250 mm
Cable ConnectionM17 6 Pin QD
Cable EntryRear
Diameter228.6 mm
Width97 mm
Depth120.4 mm
StandardsCE
