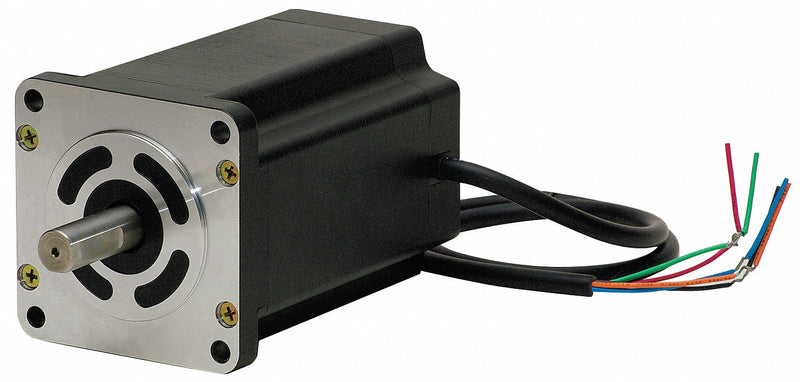

Autonics 5 Phase,NEMA 24 / 60mm Frame Stepper Motor,Solid Motor Shaft Design,2.8 Amps per Phase - A16K-G569

AutonicsSKU: C1504886
MPN : A16K-G569
Weight : 3.3 lb
filler

Price:
$488.80 $596.10

Availability : Usually Ships in 1-3 Business Days

Ideal for indexing and other rapid positioning applications, this stepping motor is for locations with limited space and where a high-speed, high-torque motor is required. It presents no maintenance or communication problems, as can be found with servo motors. The required motor driver and motion controller are available separately.

ItemStepper Motor
Phase5
Frame SizeNEMA 24 / 60mm
Shaft TypeSolid Shaft
Max. Holding Torque1.63nm / 230.53 oz-in
Resolution0.72 deg Full Step
Amps per Phase2.8
Rotor Inertia560 g-cm2
Winding Resistance0.56 ohm
Overall Length3 1/2 in
Height1 11/16 in
Width1 11/16 in
Shaft Dia.8 mm
Shaft Length22.5 mm
MountingFace
Mounting Pattern50 x 50mm
RequiresDriver 5PFF6, Controller 5PFF8 or 5PFF9, Cable 5PFG0 or 5PFG1
StandardsCE, RoHS
