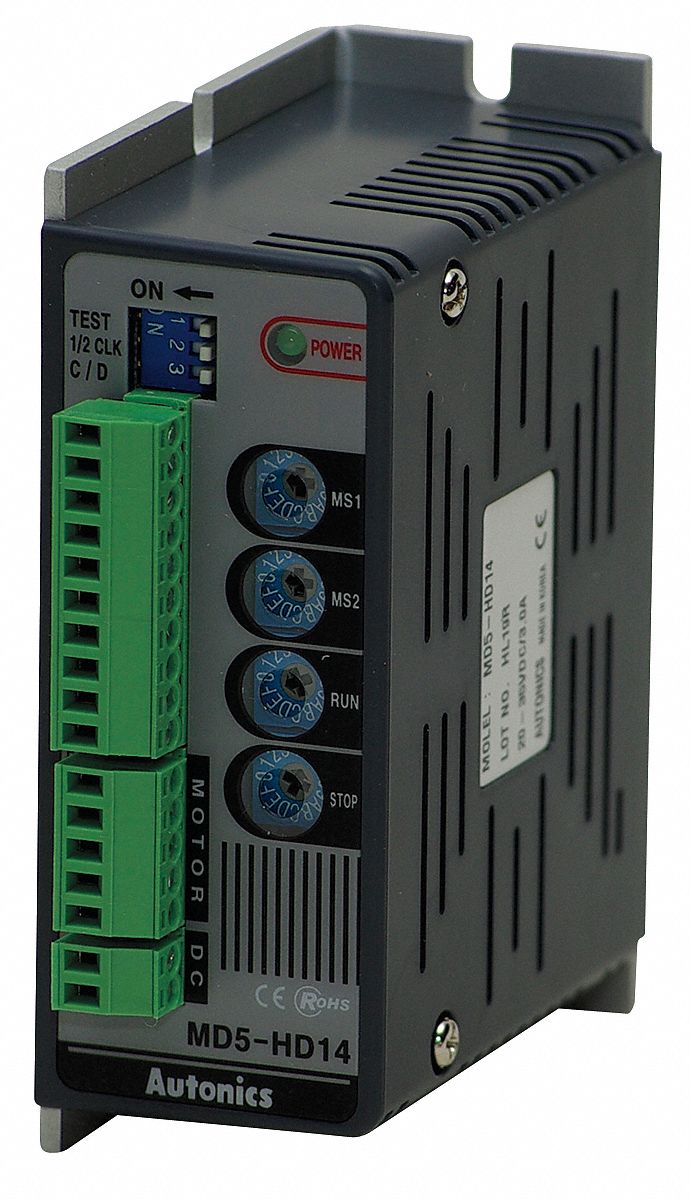

Featuring adjustable run/stop current and self-diagnosis test function, this stepping motor driver can perform very slow rotations and high-precision positioning. It offers full, half, and microstep in one driver, and is compatible with Programmable Motion Controller (PMC) or Programmable Logic Controller (PLC) with a pulse generation option. Match phase and amps per phase to the stepper motor rating.
| Item | Stepping Motor Driver |
| Phase | 5 |
| Voltage | 100-220 V AC |
| For Use With | Stepping Motors 5PFD6, 5PFD8, 5PFE4, 5PFE6, 5PFE8 and 5PFF0 |
| Amps per Phase | 2.8 |
| Run Method | Bipolar |
| Resolution / Microstep Divisions | 1, 2, 4, 5, 8, 10, 16, 20, 25, 40, 50, 80, 100, 125, 200, 250 |
| Max. Input Pulse Frequency | 500 kpps |
| Min. Input Pulse Width | 0.1 microsec |
| Height | 7 7/8 in |
| Width | 2 1/8 in |
| Depth | 5 3/4 in |
| Mounting | 2-Hole |
| Mounting Pattern | 7.283 In on Center |
| Standards | CE, RoHS, UL Recognized |
