Availability : Usually Ships in 5 Business Days

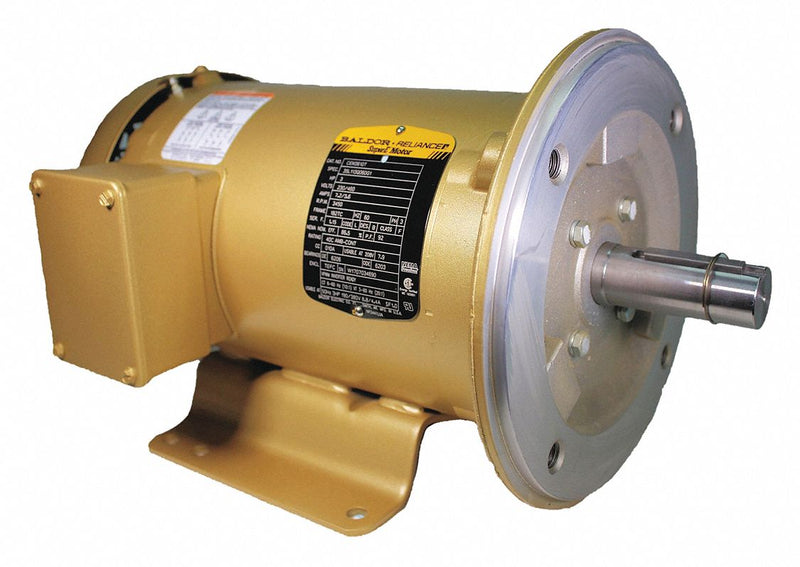

Item | General Purpose Motor |
Motor Application | General Application |
Motor Design | 3-Phase |
Motor Enclosure Design | Totally Enclosed Fan-Cooled |
HP | 3 |
Nameplate RPM | 3450 |
Frame | 182TC |
Voltage | 208-230/460 |
Hz | 60 |
Phase | 3 |
Full Load Amps | 7.9-7.2/3.6 |
No. of Speeds | 1 |
Motor Mounting Type | Face/Base |
Motor Mounting Position | Horizontal |
Motor Thermal Protection | None |
Ins. Class | F |
Motor Service Factor | 1.15 |
Motor Bearings | Ball |
Motor Frame Material | Rolled Steel |
Max. Ambient Temp. | 40 Degrees C |
Motor Shaft Rotation | CW/CCW |
Shaft Dia. | 1 1/8 in |
Shaft Length | 2 5/8 in |
Length Less Shaft | 12 9/16 in |
Overall Length | 15 3/16 in |
Motor Shaft Design | Keyed |
Standards | CSA, UL |
Duty | Continuous |
Motor Efficiency Group | NEMA Premium Efficient |
Nominal Efficiency | 86.5 % |
CC Number | CC031A |
Inverter Rated | Yes |
Includes | Conduit Box |
Manufacturers Warranty Length | 3 yr |
Green Certification or Other Recognition | NEMA Premium(R) Rated |
