Availability : Usually Ships in 5 Business Days

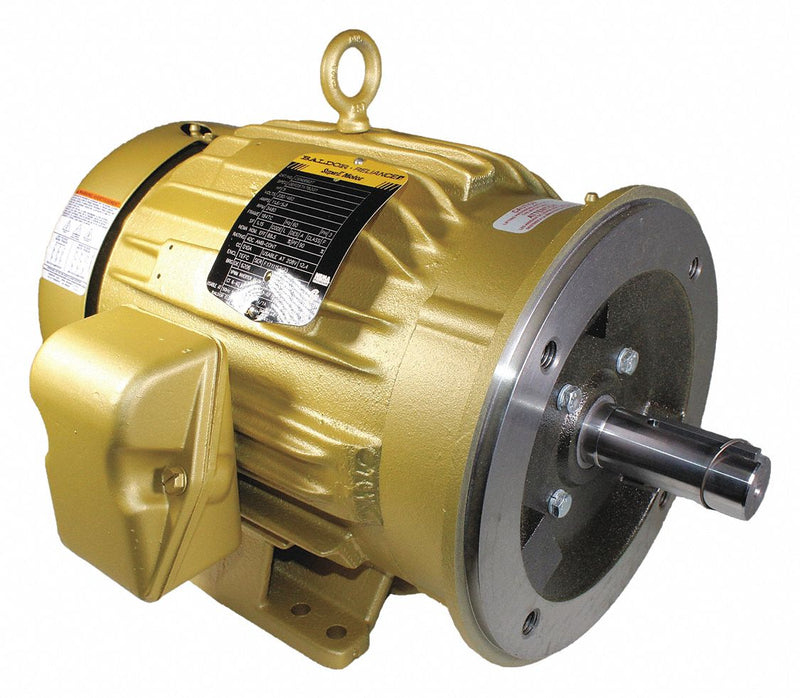

Keep equipment running with this 3-phase, continuous-duty motor. It features a totally enclosed, fan-cooled motor enclosure design, which helps resist contamination by preventing air from moving freely between the inside and outside of the frame. It employs a fan to blow outside over the motor to stay cool, rather than allowing outside air to freely circulate through the interior of the motor. The cast-iron frame offers excellent resistance to wear and holds its shape after impact. It is capable of running continuously for an extended time period without overheating.
Item | General Purpose Motor |
Motor Application | General Application |
Motor Design | 3-Phase |
Motor Enclosure Design | Totally Enclosed Fan-Cooled |
HP | 2 |
Nameplate RPM | 1165 |
Frame | 184TC |
Voltage | 208-230/460 |
Hz | 60 |
Phase | 3 |
Full Load Amps | 6.6-6.3/3.2 |
No. of Speeds | 1 |
Motor Mounting Type | Face/Base |
Motor Mounting Position | Horizontal |
Motor Thermal Protection | None |
Ins. Class | F |
Motor Service Factor | 1.15 |
Motor Bearings | Ball |
Motor Frame Material | Cast Iron |
Max. Ambient Temp. | 40 Degrees C |
Motor Shaft Rotation | CW/CCW |
Shaft Dia. | 1 1/8 in |
Shaft Length | 2 5/8 in |
Length Less Shaft | 13 3/8 in |
Overall Length | 16 in |
Motor Shaft Design | Keyed |
Standards | CSA, UL |
Duty | Continuous |
Motor Efficiency Group | NEMA Premium Efficient |
Nominal Efficiency | 88.5 % |
CC Number | CC031A |
Inverter Rated | Yes |
Includes | Conduit Box |
Manufacturers Warranty Length | 3 yr |
Green Certification or Other Recognition | NEMA Premium(R) Rated |
