Baldor 3 HP, General Purpose Motor, 3-Phase, 1160 Nameplate RPM, 208-230/460 Voltage, 213TC Frame - CEM3704T

Baldor ElectricSKU: C2757367
MPN : CEM3704T
Weight : 141.0 lb
filler

Price:
$1,693.06 $2,064.71

Availability : Usually Ships in 7-10 Business Days

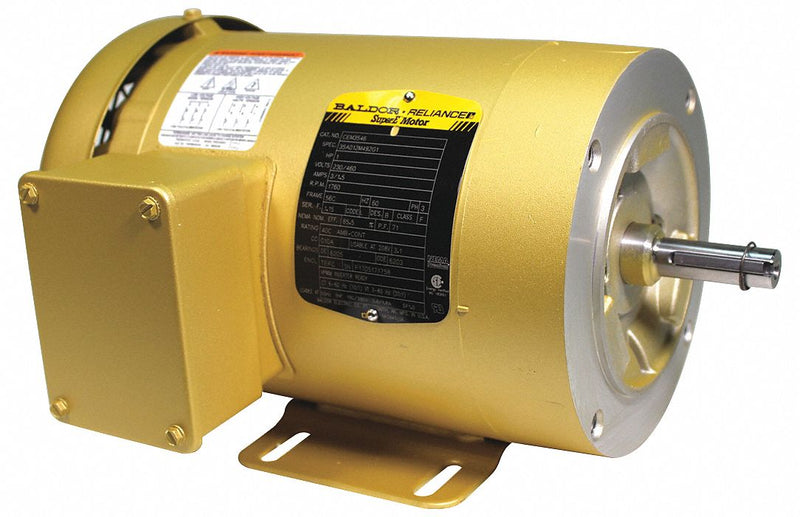

Keep equipment running with this 3-phase, continuous-duty motor. It features a totally enclosed, fan-cooled motor enclosure design, which helps resist contamination by preventing air from moving freely between the inside and outside of the frame. It employs a fan to blow outside over the motor to stay cool, rather than allowing outside air to freely circulate through the interior of the motor. The rolled steel frame is durable, ductile, and resists fracturing upon impact. It is capable of running continuously for an extended time period without overheating.

ItemGeneral Purpose Motor
Motor ApplicationGeneral Application
Motor Design3-Phase
Motor Enclosure DesignTotally Enclosed Fan-Cooled
HP3
Nameplate RPM1160
Frame213TC
Voltage208-230/460
Hz60
Phase3
Full Load Amps9.6-9.2/4.6
No. of Speeds1
Motor Mounting TypeFace/Base
Motor Mounting PositionHorizontal
Motor Thermal ProtectionNone
Ins. ClassF
Motor Service Factor1.15
Motor BearingsBall
Motor Frame MaterialRolled Steel
Max. Ambient Temp.40 Degrees C
Motor Shaft RotationCW/CCW
Shaft Dia.1 3/8 in
Shaft Length3 1/8 in
Length Less Shaft16 41/64 in
Overall Length19 3/4 in
Motor Shaft DesignKeyed
StandardsCSA, UL
DutyContinuous
Motor Efficiency GroupNEMA Premium Efficient
Nominal Efficiency89.5 %
CC NumberCC031A
Inverter RatedYes
IncludesConduit Box
Manufacturers Warranty Length3 yr
Green Certification or Other RecognitionNEMA Premium(R) Rated
