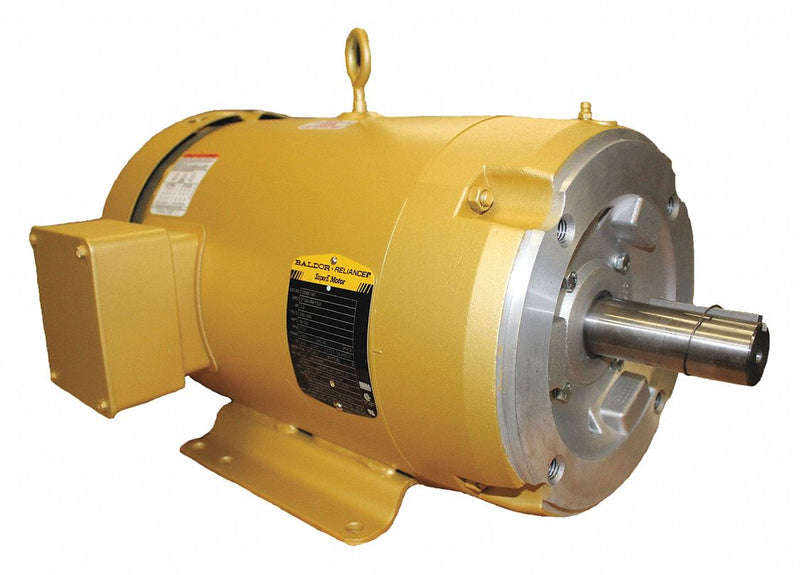

Baldor 5 HP, General Purpose Motor, 3-Phase, 1160 Nameplate RPM, 208-230/460 Voltage, 215TC Frame - CEM3708T

Baldor ElectricSKU: C2757368
MPN : CEM3708T
Weight : 161.0 lb
filler

Price:
$1,758.19 $2,144.13

Availability : Usually Ships in 7-10 Business Days

Keep equipment running with this 3-phase, continuous-duty motor. It features a totally enclosed, fan-cooled motor enclosure design, which helps resist contamination by preventing air from moving freely between the inside and outside of the frame. It employs a fan to blow outside over the motor to stay cool, rather than allowing outside air to freely circulate through the interior of the motor. The rolled steel frame is durable, ductile, and resists fracturing upon impact. It is capable of running continuously for an extended time period without overheating.

ItemGeneral Purpose Motor
Motor ApplicationGeneral Application
Motor Design3-Phase
Motor Enclosure DesignTotally Enclosed Fan-Cooled
HP5
Nameplate RPM1160
Frame215TC
Voltage208-230/460
Hz60
Phase3
Full Load Amps15.3-14.6/7.3
No. of Speeds1
Motor Mounting TypeFace/Base
Motor Mounting PositionHorizontal
Motor Thermal ProtectionNone
Ins. ClassF
Motor Service Factor1.15
Motor BearingsBall
Motor Frame MaterialRolled Steel
Max. Ambient Temp.40 Degrees C
Motor Shaft RotationCW/CCW
Shaft Dia.1 3/8 in
Shaft Length3 1/8 in
Length Less Shaft17 13/32 in
Overall Length20 1/2 in
Motor Shaft DesignKeyed
StandardsCSA, UL
DutyContinuous
Motor Efficiency GroupNEMA Premium Efficient
Nominal Efficiency89.5 %
CC NumberCC031A
Inverter RatedYes
IncludesConduit Box
Manufacturers Warranty Length3 yr
Green Certification or Other RecognitionNEMA Premium(R) Rated
