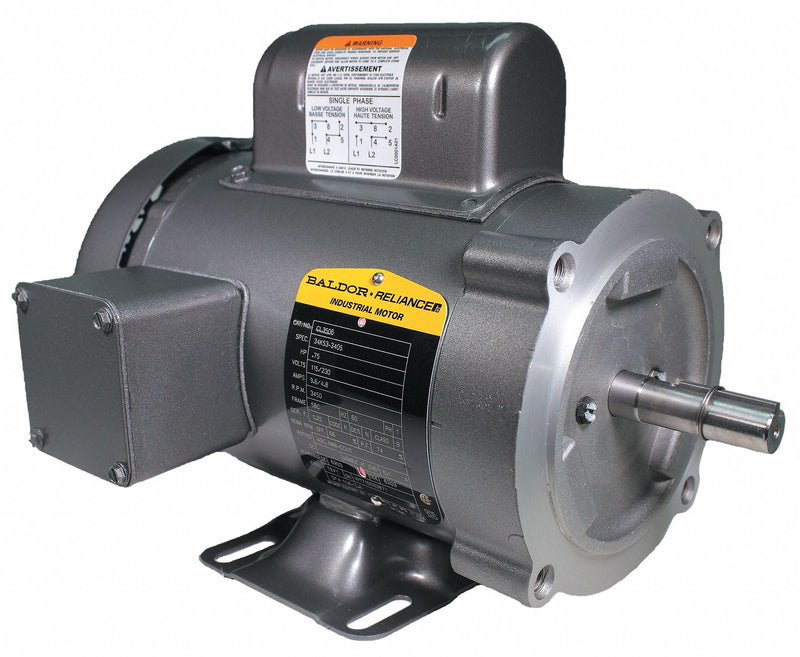

Baldor 3/4 HP, General Purpose Motor, Capacitor-Start, 3450 Nameplate RPM, 115/230 Voltage, 56C Frame - CL3506

Baldor ElectricSKU: C2968874
MPN : CL3506
Weight : 29.0 lb
filler

Price:
$713.29 $869.87

Availability : Usually Ships Within 5-7 Business Days

Keep pumps moving with this capacitor-start motor. It features a totally enclosed fan-cooled design, which helps resist contamination by preventing air from moving freely between the inside and outside of the frame. It employs a fan to blow outside over the motor to stay cool, rather than allowing outside air to freely circulate through the interior of the motor. The rolled steel frame is durable, ductile, and resists fracturing from impact. Use in pumps, compressors, tools, conveyors, farm equipment, and industrial ventilators.

ItemGeneral Purpose Motor
Motor ApplicationGeneral Application
Motor DesignCapacitor-Start
Motor Enclosure DesignTotally Enclosed Fan-Cooled
HP3/4
Nameplate RPM3450
Frame56C
Voltage115/230
Hz60
Phase1
Full Load Amps9.6/4.8
No. of Speeds1
Motor Mounting TypeFace/Base
Motor Thermal ProtectionNone
Ins. ClassB
Motor Service Factor1.25
Motor BearingsBall
Motor Frame MaterialRolled Steel
Max. Ambient Temp.40 Degrees C
Motor Shaft RotationCW/CCW
Shaft Dia.5/8 in
Shaft Length1 7/8 in
Length Less Shaft10 3/32 in
Overall Length12 in
Motor Shaft DesignKeyed
StandardsCSA, UL
DutyContinuous
Motor Efficiency GroupEnergy Efficient
Nominal Efficiency66 %
CC NumberCC031A
IncludesConduit Box
Manufacturers Warranty Length1 yr
