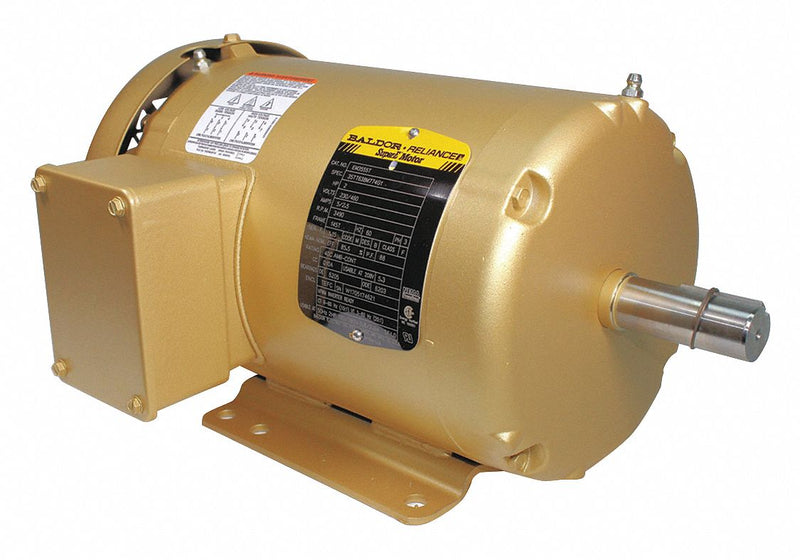

Baldor Electric EM3555T - Motor 3-Ph 2 HP 3490 RPM 145T TEFC

Baldor ElectricSKU: C2862880
MPN : EM3555T
Weight : 43.1 lb
filler

Price:
$1,252.44 $1,527.37

Availability : Usually Ships in 1-3 Business Days
ItemGeneral Purpose Motor
Motor ApplicationGeneral Application
Motor Design3-Phase
Motor Enclosure DesignTotally Enclosed Fan-Cooled
HP2
Nameplate RPM3490
Frame145T
Voltage208-230/460
Hz60
Phase3
Full Load Amps5.3-5/2.5
No. of Speeds1
Motor Mounting TypeRigid Base
Motor Mounting PositionHorizontal
Motor Thermal ProtectionNone
Ins. ClassF
Motor Service Factor1.15
Motor BearingsBall
Motor Frame MaterialSteel
Max. Ambient Temp.40 Degrees C
Motor Shaft RotationCW/CCW
Shaft Dia.7/8 in
Shaft Length2 1/4 in
Length Less Shaft11 1/16 in
Overall Length13 5/16 in
Motor Shaft DesignKeyed
StandardsCSA, UL
DutyContinuous
Motor Efficiency GroupNEMA Premium Efficient
Nominal Efficiency85.5 %
CC NumberCC031A
Inverter RatedYes
Manufacturers Warranty Length3 yr
Green Certification or Other RecognitionNEMA Premium(R) Rated
