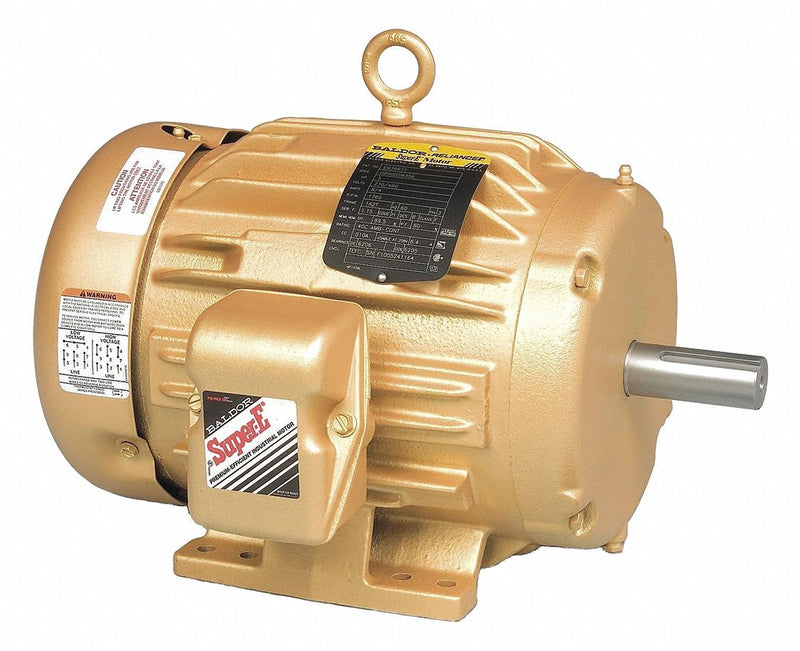

Baldor Electric EM3661T - Motor 3-Ph 3 HP 1755 RPM 182T TEFC

Baldor ElectricSKU: C2862936
MPN : EM3661T
Weight : 95.0 lb
filler

Price:
$1,670.97 $2,037.77

Availability : Usually Ships in 1-3 Business Days
ItemGeneral Purpose Motor
Motor ApplicationGeneral Application
Motor Design3-Phase
Motor Enclosure DesignTotally Enclosed Fan-Cooled
HP3
Nameplate RPM1755
Frame182T
Voltage208-230/460
Hz60
Phase3
Full Load Amps8.6-8.2/4.1
No. of Speeds1
Motor Mounting TypeRigid Base
Motor Mounting PositionHorizontal
Motor Thermal ProtectionNone
Ins. ClassF
Motor Service Factor1.15
Motor BearingsBall
Motor Frame MaterialCast Iron
Max. Ambient Temp.40 Degrees C
Motor Shaft RotationCW/CCW
Shaft Dia.1 1/8 in
Shaft Length2 3/4 in
Length Less Shaft12 1/2 in
Overall Length15 1/4 in
Motor Shaft DesignKeyed
StandardsCSA, UL
DutyContinuous
Motor Efficiency GroupNEMA Premium Efficient
Nominal Efficiency89.5 %
CC NumberCC031A
Inverter RatedYes
Manufacturers Warranty Length3 yr
Green Certification or Other RecognitionNEMA Premium(R) Rated
