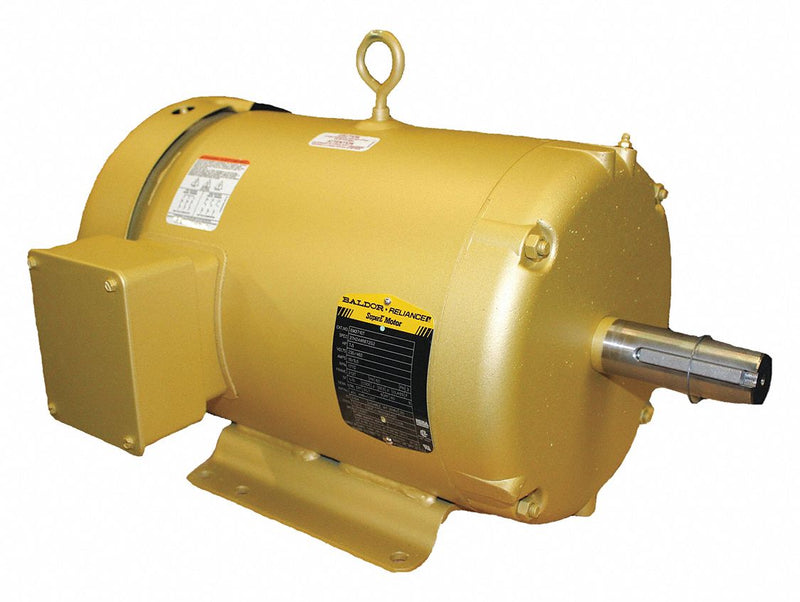

Baldor 7 1/2 HP, General Purpose Motor, 3-Phase, 1770 Nameplate RPM, 230/460 Voltage, 213T Frame - EM3710T
filler
Availability : Usually Ships in 3-5 Business Days
For use in hard-to-start applications, this general purpose motor helps to get equipment going. It features a totally enclosed, fan-cooled motor enclosure design, which helps resist contamination by preventing air from moving freely between the inside and outside of the frame. It employs a fan to blow outside over the motor to stay cool, rather than allowing outside air to freely circulate through the interior of the motor.
| Item | General Purpose Motor |
| Motor Application | General Application |
| Motor Design | 3-Phase |
| Motor Enclosure Design | Totally Enclosed Fan-Cooled |
| HP | 7 1/2 |
| Nameplate RPM | 1770 |
| Frame | 213T |
| Voltage | 230/460 |
| Hz | 60 |
| Phase | 3 |
| Full Load Amps | 18.8/9.4 |
| No. of Speeds | 1 |
| Motor Mounting Type | Rigid Base |
| Motor Mounting Position | Horizontal |
| Motor Thermal Protection | None |
| Ins. Class | F |
| Motor Service Factor | 1.15 |
| Motor Bearings | Ball |
| Motor Frame Material | Steel |
| Max. Ambient Temp. | 40 Degrees C |
| Motor Shaft Rotation | CW/CCW |
| Shaft Dia. | 1 3/8 in |
| Shaft Length | 3 3/8 in |
| Length Less Shaft | 15 1/8 in |
| Overall Length | 19 in |
| Motor Shaft Design | Keyed |
| Standards | CSA, UL |
| Duty | Continuous |
| Motor Efficiency Group | NEMA Premium Efficient |
| Nominal Efficiency | 91.7 % |
| CC Number | CC031A |
| Inverter Rated | Yes |
| Manufacturers Warranty Length | 3 yr |
| Green Certification or Other Recognition | NEMA Premium(R) Rated |
