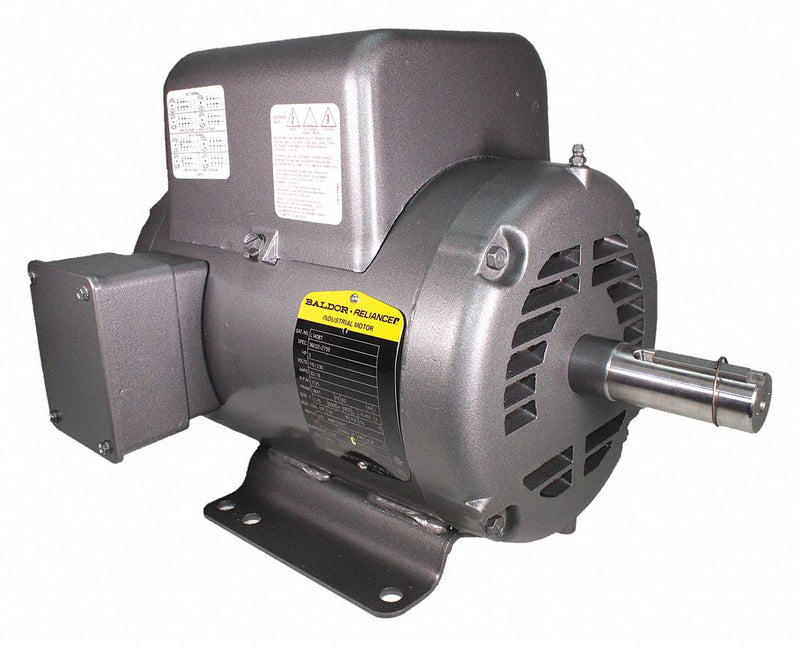

For use in in pumps, compressors, tools, conveyors, farm equipment, and industrial ventilators, this capacitor-start motor helps to keep equipment moving. It features an open dripproof design, and is engineered to permit good airflow while resisting the ingress of dripping water. The vents are angled to prevent water from entering the enclosure from above. The motor's shaft also turns a cooling fan to help pull air through the motor. The rolled steel frame is ductile, durable, and resists fracturing from impact.
Item | General Purpose Motor |
Motor Application | General Application |
Motor Design | Capacitor-Start |
Motor Enclosure Design | Open Dripproof |
HP | 3 |
Nameplate RPM | 1725 |
Frame | 184T |
Voltage | 115/230 |
Hz | 60 |
Phase | 1 |
Full Load Amps | 32/16 |
No. of Speeds | 1 |
Motor Mounting Type | Rigid Base |
Motor Thermal Protection | None |
Ins. Class | B |
Motor Service Factor | 1.15 |
Motor Bearings | Ball |
Motor Frame Material | Rolled Steel |
Max. Ambient Temp. | 40 Degrees C |
Motor Shaft Rotation | CW/CCW |
Shaft Dia. | 1 1/8 in |
Shaft Length | 2 3/4 in |
Length Less Shaft | 12 1/4 in |
Overall Length | 15 in |
Motor Shaft Design | Keyed |
Standards | UL, CSA |
Duty | Continuous |
Motor Efficiency Group | Energy Efficient |
Nominal Efficiency | 78 % |
CC Number | CC031A |
Includes | Conduit Box |
Manufacturers Warranty Length | 1 yr |
