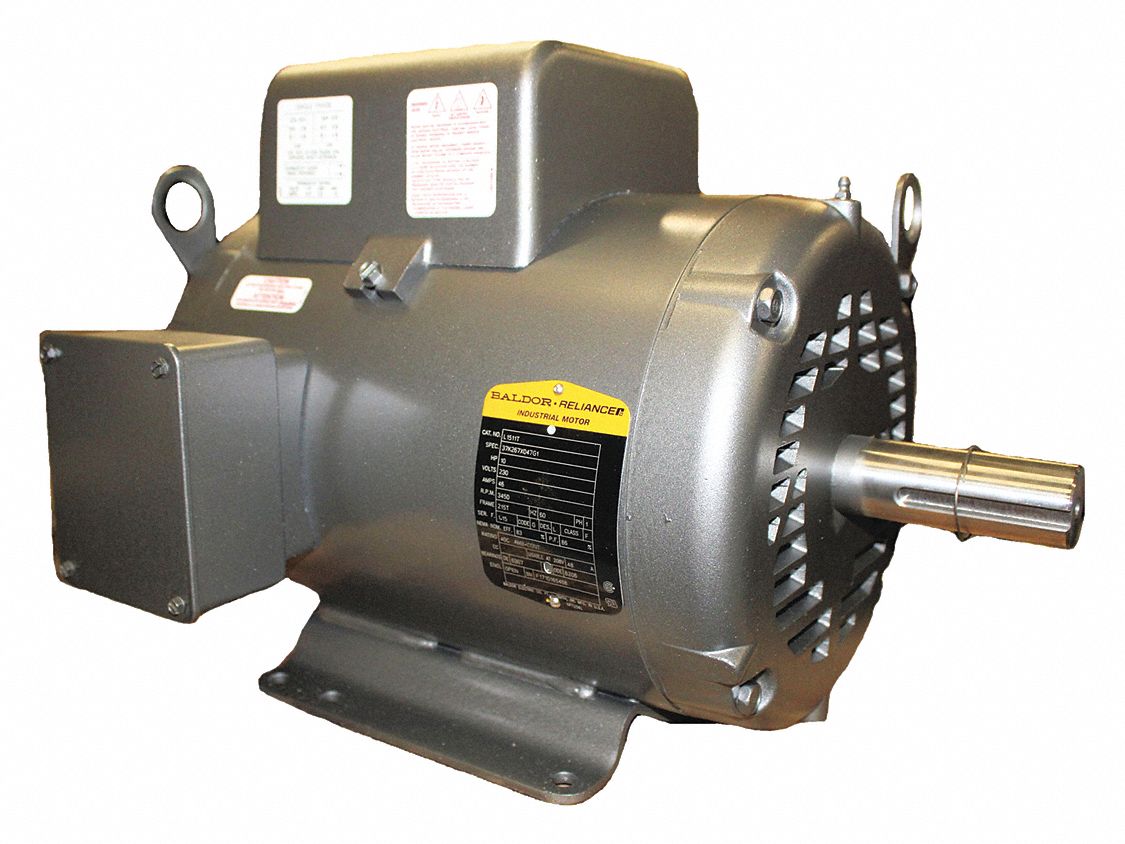

Baldor 10 HP, General Purpose Motor, Capacitor-Start, 3450 Nameplate RPM, 230 Voltage, 215T Frame - L1511T

Baldor ElectricSKU: C2968863
MPN : L1511T
Weight : 133.0 lb
filler

Price:
$3,082.66 $3,759.34

Availability : Usually Ships in 10-12 Business Days

For use in in pumps, compressors, tools, conveyors, farm equipment, and industrial ventilators, this capacitor-start motor helps to keep equipment moving. It features an open dripproof design, and is engineered to permit good airflow while resisting the ingress of dripping water. The vents are angled to prevent water from entering the enclosure from above. The motor's shaft also turns a cooling fan to help pull air through the motor. The rolled steel frame is ductile, durable, and resists fracturing from impact.

ItemGeneral Purpose Motor
Motor ApplicationGeneral Application
Motor DesignCapacitor-Start
Motor Enclosure DesignOpen Dripproof
HP10
Nameplate RPM3450
Frame215T
Voltage230
Hz60
Phase1
Full Load Amps46
No. of Speeds1
Motor Mounting TypeRigid Base
Motor Thermal ProtectionNone
Ins. ClassF
Motor Service Factor1.15
Motor BearingsBall
Motor Frame MaterialRolled Steel
Max. Ambient Temp.40 Degrees C
Motor Shaft RotationCW/CCW
Shaft Dia.1 3/8 in
Shaft Length3 3/8 in
Length Less Shaft14 1/16 in
Overall Length17 1/2 in
Motor Shaft DesignKeyed
StandardsUL, CSA
DutyContinuous
Motor Efficiency GroupEnergy Efficient
Nominal Efficiency83 %
CC NumberCC031A
IncludesConduit Box
Manufacturers Warranty Length1 yr
