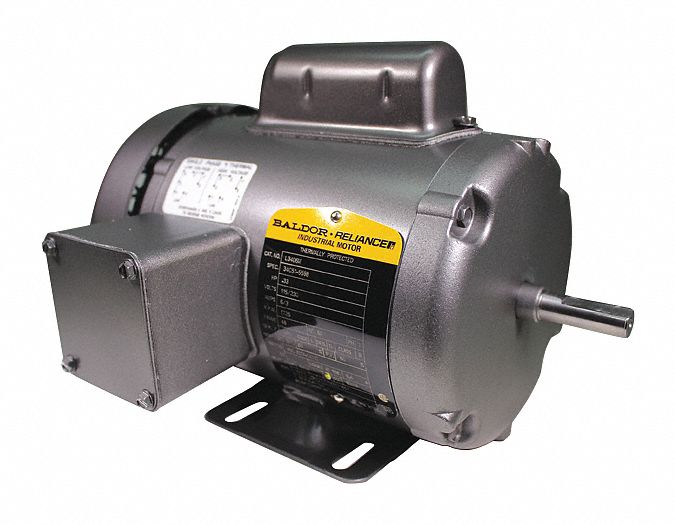

Baldor Electric L3406M - Motor 1/3 HP 1725 RPM 115/230V 48 TEFC
filler
Availability : Usually Ships in 7-10 Business Days
| Item | General Purpose Motor |
| Motor Application | General Application |
| Motor Design | Capacitor-Start |
| Motor Enclosure Design | Totally Enclosed Fan-Cooled |
| HP | 1/3 |
| Nameplate RPM | 1725 |
| Frame | 48 |
| Voltage | 115/230 |
| Hz | 60 |
| Phase | 1 |
| Full Load Amps | 6/3 |
| No. of Speeds | 1 |
| Motor Mounting Type | Rigid Base |
| Motor Thermal Protection | Manual |
| Ins. Class | B |
| Motor Service Factor | 1.35 |
| Motor Bearings | Ball |
| Motor Frame Material | Rolled Steel |
| Max. Ambient Temp. | 40 Degrees C |
| Motor Shaft Rotation | CW/CCW |
| Shaft Dia. | 1/2 in |
| Shaft Length | 1 1/2 in |
| Length Less Shaft | 9 7/32 in |
| Overall Length | 10 3/4 in |
| Motor Shaft Design | Flat |
| Standards | CSA, UL |
| Duty | Continuous |
| Motor Efficiency Group | Energy Efficient |
| Nominal Efficiency | 60 % |
| CC Number | CC031A |
| Includes | Conduit Box |
| Manufacturers Warranty Length | 1 yr |
