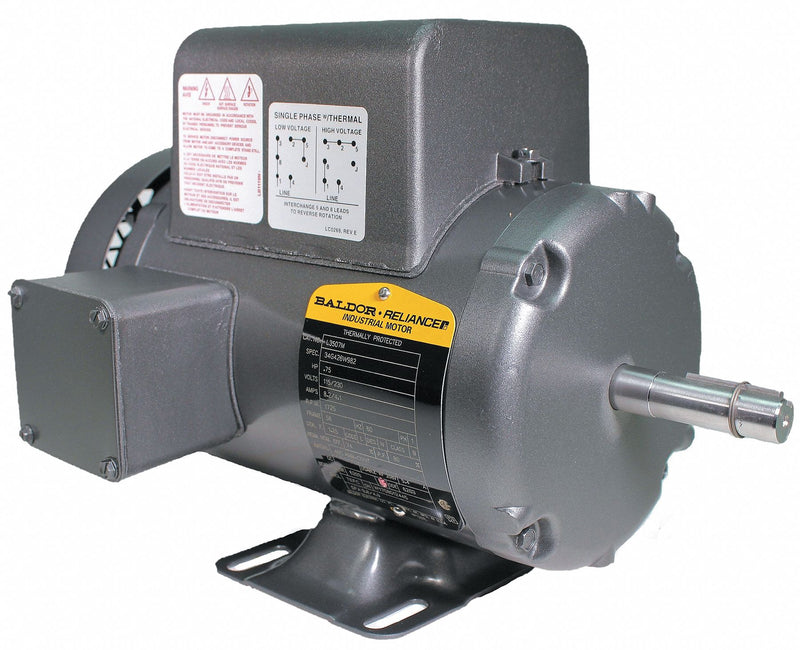

Baldor Electric L3507M - Motor 3/4 HP 1725 RPM 115/230V 56 TEFC

Baldor ElectricSKU: C2862875
MPN : L3507M
Weight : 33.0 lb

filler

Price:
$917.87 $1,480.44

Availability : Usually Ships in 5 Business Days
ItemGeneral Purpose Motor
Motor ApplicationGeneral Application
Motor DesignCapacitor-Start/Run
Motor Enclosure DesignTotally Enclosed Fan-Cooled
HP3/4
Nameplate RPM1725
Frame56
Voltage115/230
Hz60
Phase1
Full Load Amps8.2/4.1
No. of Speeds1
Motor Mounting TypeRigid Base
Motor Thermal ProtectionManual
Ins. ClassB
Motor Service Factor1.25
Motor BearingsBall
Motor Frame MaterialRolled Steel
Max. Ambient Temp.40 Degrees C
Motor Shaft RotationCW/CCW
Shaft Dia.5/8 in
Shaft Length1 7/8 in
Length Less Shaft10 19/32 in
Overall Length12 1/2 in
Motor Shaft DesignKeyed
StandardsUL, CSA
DutyContinuous
Motor Efficiency GroupEnergy Efficient
Nominal Efficiency74 %
CC NumberCC031A
IncludesConduit Box
Manufacturers Warranty Length1 yr
