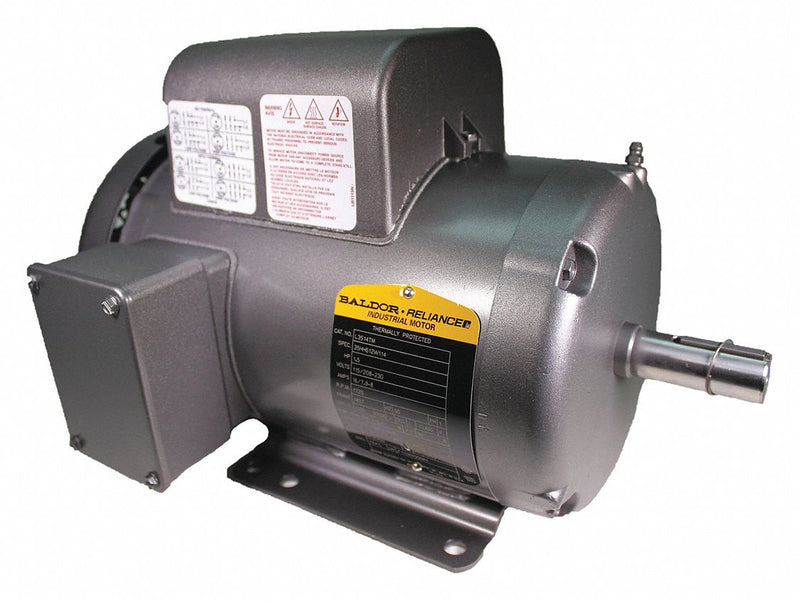

Baldor Electric L3514TM - Motor 1-1/2 HP 1725 RPM 115/230V TEFC
filler
Availability : Usually Ships in 5 Business Days
| Item | General Purpose Motor |
| Motor Application | General Application |
| Motor Design | Capacitor-Start/Run |
| Motor Enclosure Design | Totally Enclosed Fan-Cooled |
| HP | 1 1/2 |
| Nameplate RPM | 1725 |
| Frame | 145T |
| Voltage | 115/208-230 |
| Hz | 60 |
| Phase | 1 |
| Full Load Amps | 16/7.9-8 |
| No. of Speeds | 1 |
| Motor Mounting Type | Rigid Base |
| Motor Thermal Protection | Manual |
| Ins. Class | B |
| Motor Service Factor | 1 |
| Motor Bearings | Ball |
| Motor Frame Material | Rolled Steel |
| Max. Ambient Temp. | 40 Degrees C |
| Motor Shaft Rotation | CW/CCW |
| Shaft Dia. | 7/8 in |
| Shaft Length | 2 1/4 in |
| Length Less Shaft | 11 15/16 in |
| Overall Length | 14 5/32 in |
| Motor Shaft Design | Keyed |
| Standards | UL, CSA |
| Duty | Continuous |
| Motor Efficiency Group | Energy Efficient |
| Nominal Efficiency | 75.5 % |
| CC Number | CC031A |
| Includes | Conduit Box |
| Manufacturers Warranty Length | 1 yr |
