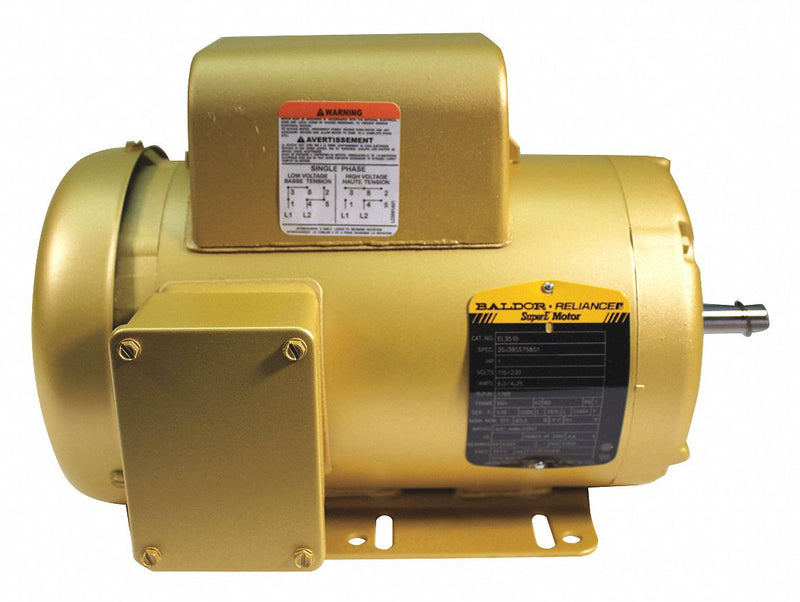

Baldor 1 HP, General Purpose Motor, Capacitor-Start, 1760 Nameplate RPM, 115/230 Voltage, 56H Frame - EL3510

Baldor ElectricSKU: C1489072
MPN : EL3510
Weight : 45.0 lb
filler

Price:
$1,169.86 $1,426.66

Availability : Usually Ships in 10 Business Days

Keep equipment running with this continuous-duty motor. It features a totally enclosed, fan-cooled motor enclosure design, which helps resist contamination by preventing air from moving freely between the inside and outside of the frame. It employs a fan to blow outside over the motor to stay cool, rather than allowing outside air to freely circulate through the interior of the motor. The rolled steel frame is durable, ductile, and resists fracturing upon impact. It is capable of running continuously for an extended time period without overheating.

ItemGeneral Purpose Motor
Motor ApplicationGeneral Application
Motor DesignCapacitor-Start
Motor Enclosure DesignTotally Enclosed Fan-Cooled
HP1
Nameplate RPM1760
Frame56H
Voltage115/230
Hz60
Phase1
Full Load Amps4.3
No. of Speeds1
Motor Mounting TypeRigid Base
Motor Mounting PositionHorizontal
Motor Thermal ProtectionNone
Ins. ClassF
Motor Service Factor1.15
Motor BearingsBall
Motor Frame MaterialRolled Steel
Max. Ambient Temp.40 Degrees C
Motor Shaft RotationCW/CCW
Shaft Dia.5/8 in
Shaft Length1 7/8 in
Length Less Shaft11 15/16 in
Overall Length13 13/16 in
Motor Shaft DesignKeyed
StandardsCSA, UL
DutyContinuous
Motor Efficiency GroupEnergy Efficient
Nominal Efficiency82.5 %
CC NumberCC031A
Inverter RatedNo
IncludesConduit Box
Manufacturers Warranty Length3 yr
