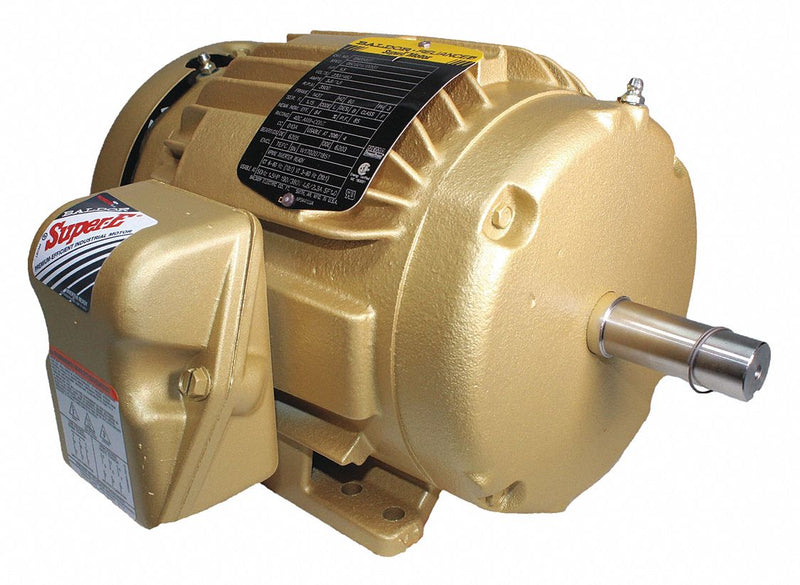

Baldor 1 1/2 HP, General Purpose Motor, 3-Phase, 3500 Nameplate RPM, 208-230/460 Voltage, 143T Frame - EM3583T
Availability : Usually Ships in 5 Business Days
For use in hard-to-start applications, this general purpose motor helps to get equipment going. It features a totally enclosed, fan-cooled motor enclosure design, which helps resist contamination by preventing air from moving freely between the inside and outside of the frame. It employs a fan to blow outside over the motor to stay cool, rather than allowing outside air to freely circulate through the interior of the motor. The cast iron frame offers excellent resistance to wear, and holds its shape after impact.
| Item | General Purpose Motor |
| Motor Application | General Application |
| Motor Design | 3-Phase |
| Motor Enclosure Design | Totally Enclosed Fan-Cooled |
| HP | 1 1/2 |
| Nameplate RPM | 3500 |
| Frame | 143T |
| Voltage | 208-230/460 |
| Hz | 60 |
| Phase | 3 |
| Full Load Amps | 4-3.8/1.9 |
| No. of Speeds | 1 |
| Motor Mounting Type | Rigid Base |
| Motor Mounting Position | Horizontal |
| Motor Thermal Protection | None |
| Ins. Class | F |
| Motor Service Factor | 1.15 |
| Motor Bearings | Ball |
| Motor Frame Material | Cast Iron |
| Max. Ambient Temp. | 40 Degrees C |
| Motor Shaft Rotation | CW/CCW |
| Shaft Dia. | 7/8 in |
| Shaft Length | 2 1/4 in |
| Length Less Shaft | 10 9/32 in |
| Overall Length | 12 9/16 in |
| Motor Shaft Design | Keyed |
| Standards | CSA, UL |
| Duty | Continuous |
| Motor Efficiency Group | NEMA Premium Efficient |
| Nominal Efficiency | 84 % |
| CC Number | CC031A |
| Inverter Rated | Yes |
| Manufacturers Warranty Length | 3 yr |
| Green Certification or Other Recognition | NEMA Premium(R) Rated |
