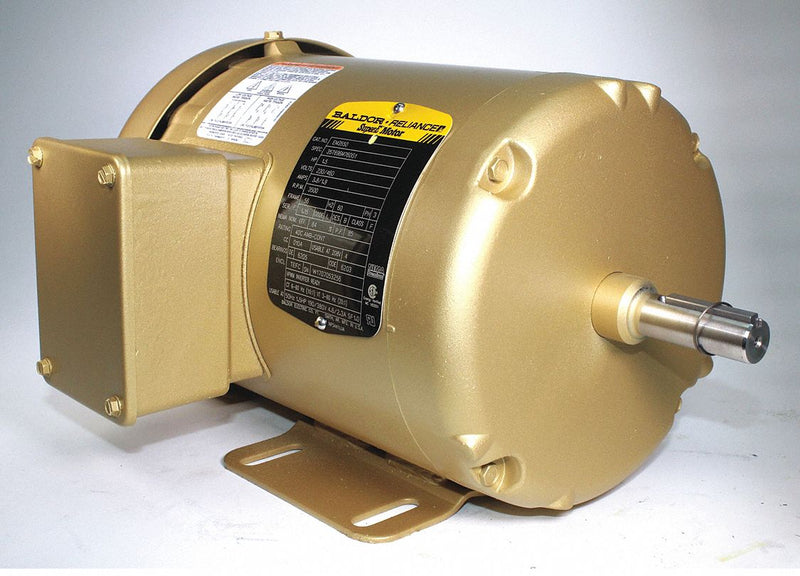

Baldor 1 1/2 HP, General Purpose Motor, 3-Phase, 3500 Nameplate RPM, 208-230/460 Voltage, 56 Frame - EM3550

Baldor ElectricSKU: C1490868
MPN : EM3550
Weight : 35.25 lb

filler

Price:
$1,056.84 $1,704.57

Availability : Usually Ships in 5 Business Days

For use in hard-to-start applications, this general purpose motor helps to get equipment going. It features a totally enclosed, fan-cooled motor enclosure design, which helps resist contamination by preventing air from moving freely between the inside and outside of the frame. It employs a fan to blow outside over the motor to stay cool, rather than allowing outside air to freely circulate through the interior of the motor.

ItemGeneral Purpose Motor
Motor ApplicationGeneral Application
Motor Design3-Phase
Motor Enclosure DesignTotally Enclosed Fan-Cooled
HP1 1/2
Nameplate RPM3500
Frame56
Voltage208-230/460
Hz60
Phase3
Full Load Amps4-3.8/1.9
No. of Speeds1
Motor Mounting TypeRigid Base
Motor Mounting PositionHorizontal
Motor Thermal ProtectionNone
Ins. ClassF
Motor Service Factor1.15
Motor BearingsBall
Motor Frame MaterialSteel
Max. Ambient Temp.40 Degrees C
Motor Shaft RotationCW/CCW
Shaft Dia.5/8 in
Shaft Length1 7/8 in
Length Less Shaft10 3/8 in
Overall Length12 1/4 in
Motor Shaft DesignKeyed
StandardsCSA, UL
DutyContinuous
Motor Efficiency GroupNEMA Premium Efficient
Nominal Efficiency84 %
CC NumberCC031A
Inverter RatedNo
Manufacturers Warranty Length3 yr
Green Certification or Other RecognitionNEMA Premium(R) Rated
