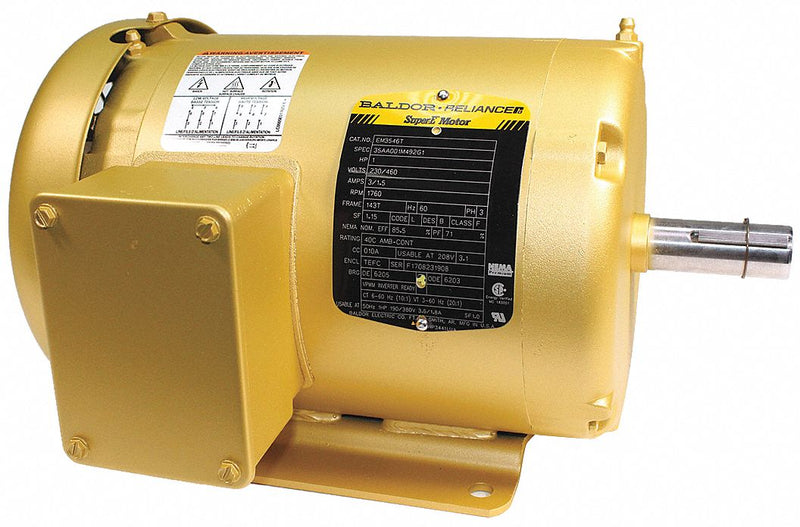

Baldor 1 HP, General Purpose Motor, 3-Phase, 1760 Nameplate RPM, 208-230/460 Voltage, 143T Frame - EM3546T
filler
Availability : Usually Ships in 7-10 Business Days
For use in hard-to-start applications, this general purpose motor helps to get equipment going. It features a totally enclosed, fan-cooled motor enclosure design, which helps resist contamination by preventing air from moving freely between the inside and outside of the frame. It employs a fan to blow outside over the motor to stay cool, rather than allowing outside air to freely circulate through the interior of the motor.
| Item | General Purpose Motor |
| Motor Application | General Application |
| Motor Design | 3-Phase |
| Motor Enclosure Design | Totally Enclosed Fan-Cooled |
| HP | 1 |
| Nameplate RPM | 1760 |
| Frame | 143T |
| Voltage | 208-230/460 |
| Hz | 60 |
| Phase | 3 |
| Full Load Amps | 3.1-3/1.5 |
| No. of Speeds | 1 |
| Motor Mounting Type | Rigid Base |
| Motor Mounting Position | Horizontal |
| Motor Thermal Protection | None |
| Ins. Class | F |
| Motor Service Factor | 1.15 |
| Motor Bearings | Ball |
| Motor Frame Material | Steel |
| Max. Ambient Temp. | 40 Degrees C |
| Motor Shaft Rotation | CW/CCW |
| Shaft Dia. | 7/8 in |
| Shaft Length | 2 1/4 in |
| Length Less Shaft | 10 1/16 in |
| Overall Length | 12 5/16 in |
| Motor Shaft Design | Keyed |
| Standards | CSA, UL |
| Duty | Continuous |
| Motor Efficiency Group | NEMA Premium Efficient |
| Nominal Efficiency | 85.5 % |
| CC Number | CC031A |
| Inverter Rated | Yes |
| Manufacturers Warranty Length | 3 yr |
| Green Certification or Other Recognition | NEMA Premium(R) Rated |
