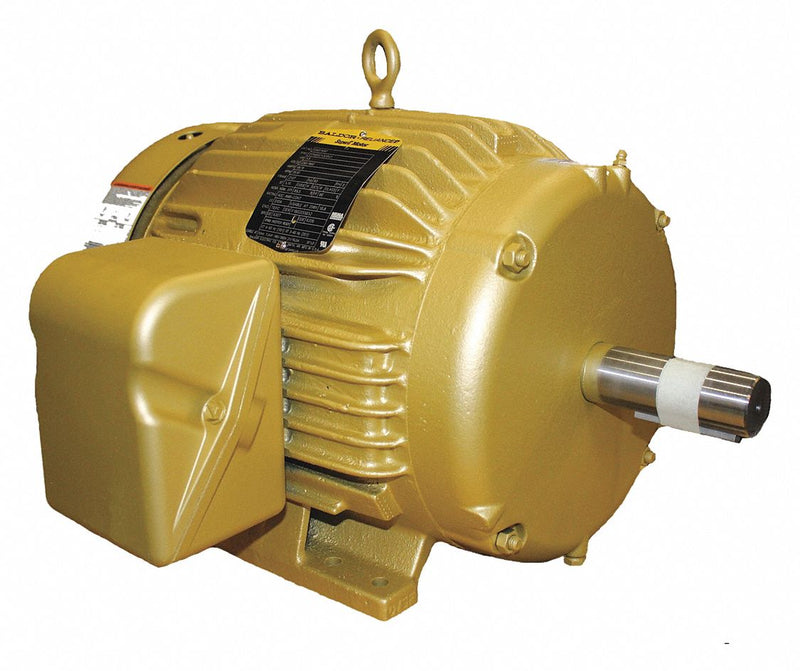

Baldor 10 HP, General Purpose Motor, 3-Phase, 1760 Nameplate RPM, 230/460 Voltage, 215T Frame - EM3774T

Baldor ElectricSKU: C1556185
MPN : EM3774T
Weight : 231.0 lb
filler

Price:
$1,764.82 $2,152.22

Availability : Usually Ships in 1-3 Business Days

For use in hard-to-start applications, this general purpose motor helps to get equipment going. It features a totally enclosed, fan-cooled motor enclosure design, which helps resist contamination by preventing air from moving freely between the inside and outside of the frame. It employs a fan to blow outside over the motor to stay cool, rather than allowing outside air to freely circulate through the interior of the motor.

ItemGeneral Purpose Motor
Motor ApplicationGeneral Application
Motor Design3-Phase
Motor Enclosure DesignTotally Enclosed Fan-Cooled
HP10
Nameplate RPM1760
Frame215T
Voltage230/460
Hz60
Phase3
Full Load Amps24.4/12.2
No. of Speeds1
Motor Mounting TypeRigid Base
Motor Mounting PositionHorizontal
Motor Thermal ProtectionNone
Ins. ClassF
Motor Service Factor1.15
Motor BearingsBall
Motor Frame MaterialCast Iron
Max. Ambient Temp.40 Degrees C
Motor Shaft RotationCW/CCW
Shaft Dia.1 3/8 in
Shaft Length3 3/8 in
Length Less Shaft15 1/16 in
Overall Length18 7/16 in
Motor Shaft DesignKeyed
StandardsCSA, UL
DutyContinuous
Motor Efficiency GroupNEMA Premium Efficient
Nominal Efficiency91.7 %
CC NumberCC031A
Inverter RatedYes
Manufacturers Warranty Length3 yr
Green Certification or Other RecognitionNEMA Premium(R) Rated
