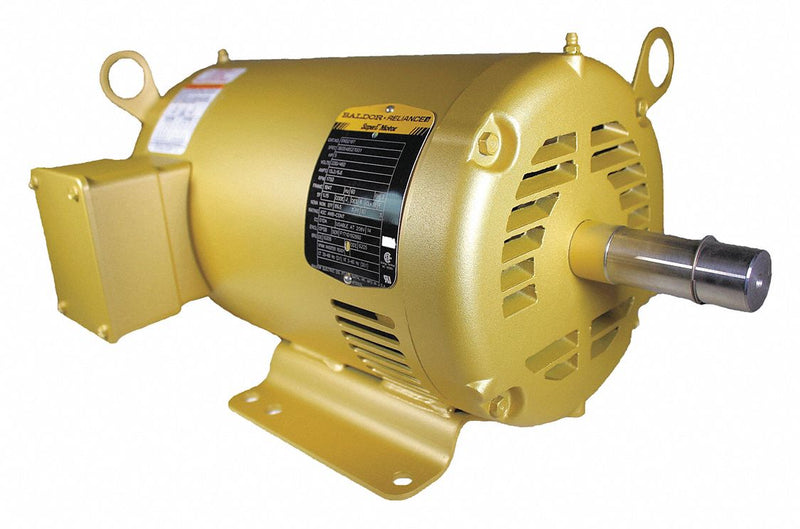

Baldor 5 HP, General Purpose Motor, 3-Phase, 1750 Nameplate RPM, 208-230/460 Voltage, 184T Frame - EM3218T

Baldor ElectricSKU: C1556170
MPN : EM3218T
Weight : 83.15 lb
filler

Price:
$1,321.37 $1,611.43

Availability : Usually Ships in 1-3 Business Days

Designed for mechanical loads, and for hard-to-start applications such as conveyors, belt-driven equipment, machine tools, and reciprocating pumps, this general purpose motor helps keep equipment moving. It features an open dripproof motor enclosure design.

ItemGeneral Purpose Motor
Motor ApplicationGeneral Application
Motor Design3-Phase
Motor Enclosure DesignOpen Dripproof
HP5
Nameplate RPM1750
Frame184T
Voltage208-230/460
Hz60
Phase3
Full Load Amps14-13.2/6.6
No. of Speeds1
Motor Mounting TypeRigid Base
Motor Mounting PositionHorizontal
Motor Thermal ProtectionNone
Ins. ClassF
Motor Service Factor1.15
Motor BearingsBall
Motor Frame MaterialSteel
Max. Ambient Temp.40 Degrees C
Motor Shaft RotationCW/CCW
Shaft Dia.1 1/8 in
Shaft Length2 3/4 in
Length Less Shaft13 3/4 in
Overall Length16 1/2 in
Motor Shaft DesignKeyed
StandardsCSA, UL
DutyContinuous
Motor Efficiency GroupNEMA Premium Efficient
Nominal Efficiency89.5 %
CC NumberCC031A
Inverter RatedYes
Manufacturers Warranty Length3 yr
Green Certification or Other RecognitionNEMA Premium(R) Rated
