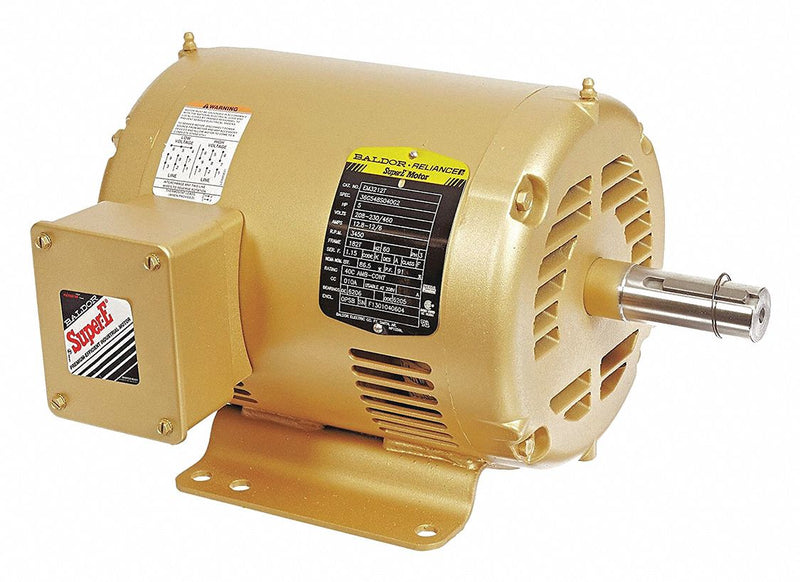

Baldor 5 HP, General Purpose Motor, 3-Phase, 3450 Nameplate RPM, 208-230/460 Voltage, 182T Frame - EM3212T

Baldor ElectricSKU: C1556169
MPN : EM3212T
Weight : 61.7 lb
filler

Price:
$1,554.47 $1,895.70

Availability : Usually Ships in 1-3 Business Days

Keep pumps moving with this general purpose motor. It features an open dripproof motor enclosure design, which is engineered to permit good airflow while resisting the ingress of dripping water. The vents are angled to prevent water from entering the enclosure from above. The motor's shaft also turns a cooling fan to help pull air through the motor. For durability and long service life, the motor also features a steel frame.

ItemGeneral Purpose Motor
Motor ApplicationGeneral Application
Motor Design3-Phase
Motor Enclosure DesignOpen Dripproof
HP5
Nameplate RPM3450
Frame182T
Voltage208-230/460
Hz60
Phase3
Full Load Amps12.8-12/6
No. of Speeds1
Motor Mounting TypeRigid Base
Motor Mounting PositionHorizontal
Motor Thermal ProtectionNone
Ins. ClassF
Motor Service Factor1.15
Motor BearingsBall
Motor Frame MaterialSteel
Max. Ambient Temp.40 Degrees C
Motor Shaft RotationCW/CCW
Shaft Dia.1 1/8 in
Shaft Length2 3/4 in
Length Less Shaft10 7/8 in
Overall Length13 5/8 in
Motor Shaft DesignKeyed
StandardsCSA, UL
DutyContinuous
Motor Efficiency GroupNEMA Premium Efficient
Nominal Efficiency86.5 %
CC NumberCC031A
Inverter RatedYes
Manufacturers Warranty Length3 yr
Green Certification or Other RecognitionNEMA Premium(R) Rated
