Baldor 1 1/2 HP, General Purpose Motor, 3-Phase, 3500 Nameplate RPM, 208-230/460 Voltage, 143TC Frame - CEM3583T
Baldor 1 1/2 HP, General Purpose Motor, 3-Phase, 3500 Nameplate RPM, 208-230/460 Voltage, 143TC Frame - CEM3583T

Baldor 1 1/2 HP, General Purpose Motor, 3-Phase, 3500 Nameplate RPM, 208-230/460 Voltage, 143TC Frame - CEM3583T

Baldor ElectricSKU: C1489188
MPN : CEM3583T
Weight : 55.0 lb

filler
Price:
$1,493.46 $2,408.81

Availability : Usually Ships in 5 Business Days

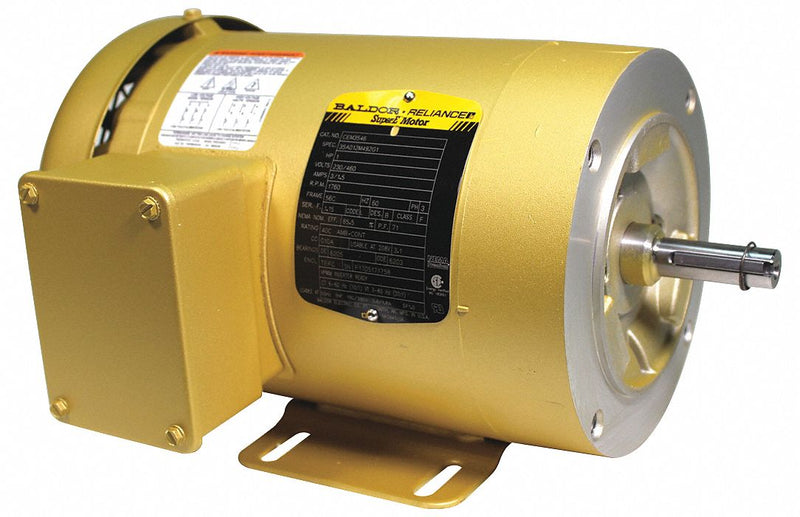

Keep equipment running with this 3-phase, continuous-duty motor. It features a totally enclosed, fan-cooled motor enclosure design, which helps resist contamination by preventing air from moving freely between the inside and outside of the frame. It employs a fan to blow outside over the motor to stay cool, rather than allowing outside air to freely circulate through the interior of the motor. The cast-iron frame offers excellent resistance to wear and holds its shape after impact. It is capable of running continuously for an extended time period without overheating.

ItemGeneral Purpose Motor
Motor ApplicationGeneral Application
Motor Design3-Phase
Motor Enclosure DesignTotally Enclosed Fan-Cooled
HP1 1/2
Nameplate RPM3500
Frame143TC
Voltage208-230/460
Hz60
Phase3
Full Load Amps4-3.8/1.9
No. of Speeds1
Motor Mounting TypeFace/Base
Motor Mounting PositionHorizontal
Motor Thermal ProtectionNone
Ins. ClassF
Motor Service Factor1.15
Motor BearingsBall
Motor Frame MaterialCast Iron
Max. Ambient Temp.40 Degrees C
Motor Shaft RotationCW/CCW
Shaft Dia.7/8 in
Shaft Length2 1/4 in
Length Less Shaft11 3/64 in
Overall Length13 in
Motor Shaft DesignKeyed
StandardsCSA, UL
DutyContinuous
Motor Efficiency GroupNEMA Premium Efficient
Nominal Efficiency84 %
CC NumberCC031A
Inverter RatedYes
IncludesConduit Box
Manufacturers Warranty Length3 yr
Green Certification or Other RecognitionNEMA Premium(R) Rated
