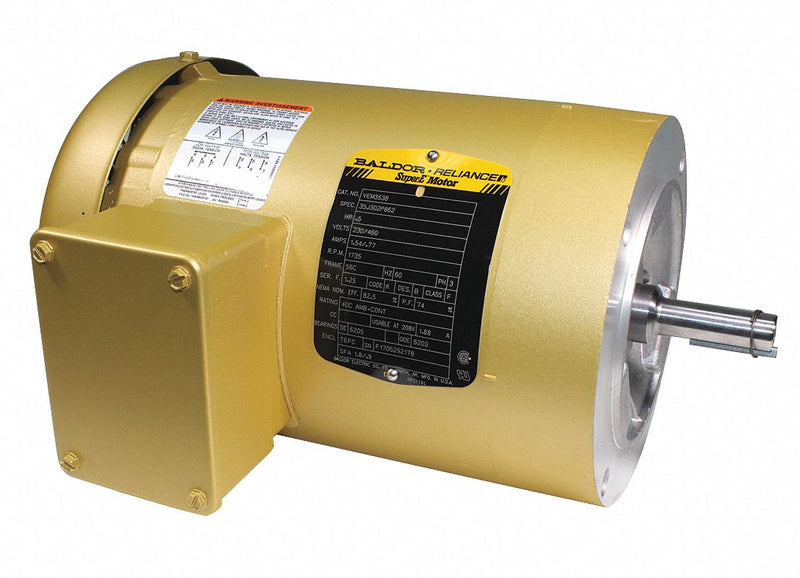

Baldor 1/2 HP, General Purpose Motor, 3-Phase, 1735 Nameplate RPM, 230/460 Voltage, 56C Frame - VEM3538

Baldor ElectricSKU: C1550237
MPN : VEM3538
Weight : 30.35 lb
filler

Price:
$1,026.44 $1,251.76

Availability : Usually Ships in 3-5 Business Days

Keep equipment running with this general purpose motor. It features a totally enclosed fan-cooled motor enclosure design, which helps resist contamination by preventing air from moving freely between the inside and outside of the frame. It employs a fan to blow outside over the motor to stay cool, rather than allowing outside air to freely circulate through the interior of the motor. Use in mechanical loads, and for hard-to-start applications such as conveyors, belt-driven equipment, machine tools, and reciprocating pumps.

ItemGeneral Purpose Motor
Motor ApplicationGeneral Application
Motor Design3-Phase
Motor Enclosure DesignTotally Enclosed Fan-Cooled
HP1/2
Nameplate RPM1735
Frame56C
Voltage230/460
Hz60
Phase3
Full Load Amps1.5/0.77
No. of Speeds1
Motor Mounting TypeRigid Base
Motor Mounting PositionHorizontal
Motor Thermal ProtectionNone
Ins. ClassF
Motor Service Factor1.25
Motor BearingsBall
Motor Frame MaterialRolled Steel
Max. Ambient Temp.40 Degrees C
Motor Shaft RotationCW/CCW
Shaft Dia.5/8 in
Shaft Length1 7/8 in
Length Less Shaft10 23/64 in
Overall Length12 1/4 in
Motor Shaft DesignKeyed
StandardsCSA, UL
DutyContinuous
Motor Efficiency GroupNEMA Premium Efficient
Nominal Efficiency82.5 %
CC NumberCC031A
Inverter RatedYes
IncludesConduit Box
Manufacturers Warranty Length3 yr
Green Certification or Other RecognitionNEMA Premium(R) Rated
