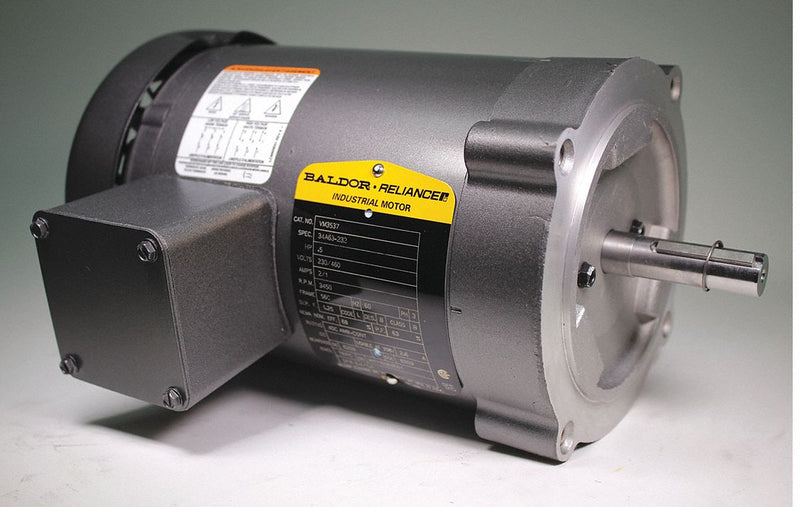

Baldor 1/2 HP, General Purpose Motor, 3-Phase, 3450 Nameplate RPM, 230/460 Voltage, 56C Frame - VM3537

Baldor ElectricSKU: C1550244
MPN : VM3537
Weight : 19.35 lb
filler

Price:
$445.44 $543.22

Availability : Usually Ships in 1-3 Business Days

Keep equipment running with this general purpose motor. It features a totally enclosed fan-cooled motor enclosure design, which helps resist contamination by preventing air from moving freely between the inside and outside of the frame. It employs a fan to blow outside over the motor to stay cool, rather than allowing outside air to freely circulate through the interior of the motor. Use in mechanical loads, and for hard-to-start applications such as conveyors, belt-driven equipment, machine tools, and reciprocating pumps.

ItemGeneral Purpose Motor
Motor ApplicationGeneral Application
Motor Design3-Phase
Motor Enclosure DesignTotally Enclosed Fan-Cooled
HP1/2
Nameplate RPM3450
Frame56C
Voltage230/460
Hz60
Phase3
Full Load Amps2/1
No. of Speeds1
Motor Mounting TypeRigid Base
Motor Mounting PositionHorizontal
Motor Thermal ProtectionNone
Ins. ClassB
Motor Service Factor1.25
Motor BearingsBall
Motor Frame MaterialRolled Steel
Max. Ambient Temp.40 Degrees C
Motor Shaft RotationCW/CCW
Shaft Dia.5/8 in
Shaft Length1 7/8 in
Length Less Shaft9 15/32 in
Overall Length11 3/8 in
Motor Shaft DesignKeyed
StandardsCSA, UL
DutyContinuous
Motor Efficiency GroupNEMA Premium Efficient
Nominal Efficiency68 %
CC NumberCC031A
Inverter RatedNo
IncludesConduit Box
Manufacturers Warranty Length1.5 yr
Green Certification or Other RecognitionNEMA Premium(R) Rated
