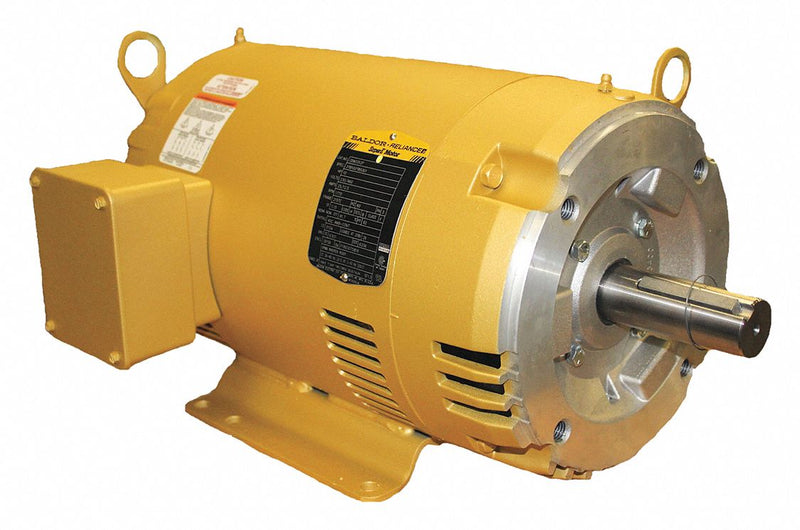

Baldor 10 HP, General Purpose Motor, 3-Phase, 3475 Nameplate RPM, 208-230/460 Voltage, 213TC Frame - CEM3312T

Baldor ElectricSKU: C1489062
MPN : CEM3312T
Weight : 121.0 lb

filler

Price:
$2,277.97 $3,674.15

Availability : Usually Ships in 10 Business Days

Keep equipment running with this general purpose motor. It features an open dripproof motor enclosure design, which is engineered to permit good airflow while resisting the ingress of dripping water. The vents are angled to prevent water from entering the enclosure from above. The motor's shaft also turns a cooling fan to help pull air through the motor. Use for mechanical loads, and for hard-to-start applications such as conveyors, belt-driven equipment, machine tools, and reciprocating pumps.

ItemGeneral Purpose Motor
Motor ApplicationGeneral Application
Motor Design3-Phase
Motor Enclosure DesignOpen Dripproof
HP10
Nameplate RPM3475
Frame213TC
Voltage208-230/460
Hz60
Phase3
Full Load Amps25.4-24/12
No. of Speeds1
Motor Mounting TypeRigid Base
Motor Mounting PositionHorizontal
Motor Thermal ProtectionNone
Ins. ClassF
Motor Service Factor1.15
Motor BearingsBall
Motor Frame MaterialRolled Steel
Max. Ambient Temp.40 Degrees C
Motor Shaft RotationCW/CCW
Shaft Dia.1 3/8 in
Shaft Length3 3/8 in
Length Less Shaft13 15/16 in
Overall Length17 1/16 in
Motor Shaft DesignKeyed
StandardsCSA, UL
DutyContinuous
Motor Efficiency GroupEnergy Efficient
Nominal Efficiency89.5 %
CC NumberCC031A
Inverter RatedNo
IncludesConduit Box
Manufacturers Warranty Length3 yr
