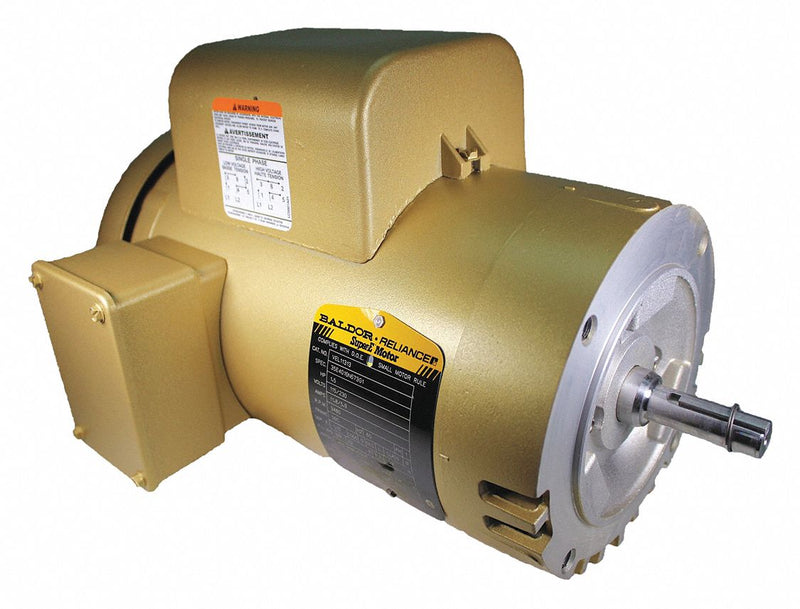

Baldor 1 1/2 HP, General Purpose Motor, Capacitor-Start, 3450 Nameplate RPM, 115/230 Voltage - VEL11313

Baldor ElectricSKU: C2968870
MPN : VEL11313
Weight : 33.0 lb
filler

Price:
$981.94 $1,197.49

Availability : Usually Ships in 1-3 Business Days

Keep pumps moving with this general purpose motor. It features an open dripproof motor enclosure design, which is engineered to permit good airflow while resisting the ingress of dripping water. The vents are angled to prevent water from entering the enclosure from above. The motor's shaft also turns a cooling fan to help pull air through the motor. For durability and long service life, the motor also features a rolled steel frame.

ItemGeneral Purpose Motor
Motor ApplicationGeneral Application
Motor DesignCapacitor-Start
Motor Enclosure DesignOpen Dripproof
HP1 1/2
Nameplate RPM3450
Frame56C
Voltage115/230
Hz60
Phase1
Full Load Amps12.8/6.4
No. of Speeds1
Motor Mounting TypeFace
Motor Mounting PositionHorizontal
Motor Thermal ProtectionNone
Ins. ClassF
Motor Service Factor1.15
Motor BearingsBall
Motor Frame MaterialRolled Steel
Max. Ambient Temp.40 Degrees C
Motor Shaft RotationCW/CCW
Shaft Dia.5/8 in
Shaft Length1 7/8 in
Length Less Shaft12 1/4 in
Overall Length14 3/16 in
Motor Shaft DesignKeyed
StandardsCSA, UL
DutyContinuous
Motor Efficiency GroupNEMA Premium Efficient
Nominal Efficiency82.6 %
CC NumberCC031A
Inverter RatedYes
IncludesConduit Box
Manufacturers Warranty Length3 yr
Green Certification or Other RecognitionNEMA Premium(R) Rated
