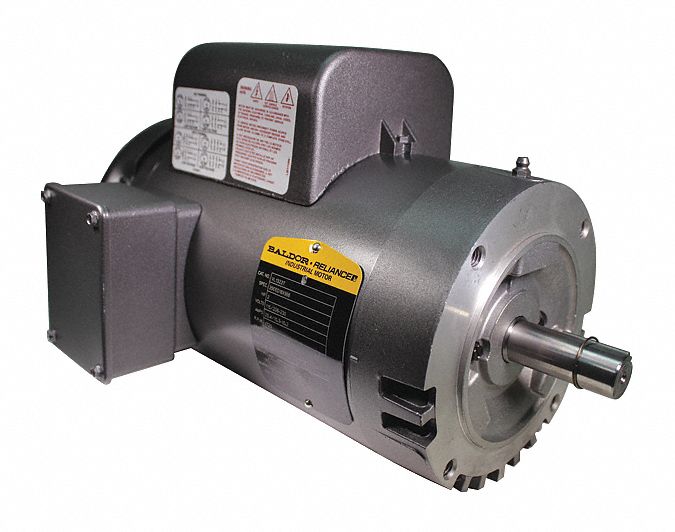

Baldor Electric VL1322T - Motor 2 HP 1725 RPM 115/230V 145TC ODP
filler
Availability : Usually Ships in 5 Business Days
General Purpose Motor Capacitor-Start/Run Open Dripproof 2 HP Nameplate RPM 1725 145TC Frame Voltage 115/230 60 Hz 1 Phase 20.4/10.3-10.2 Full Load Amps No of Speeds 1 Motor Mounting Type Rigid Base Motor Thermal Protection None Ins. Class B 1.15 Motor Service Factor Ball Motor Bearings Motor Frame Material Rolled Steel Max Ambient Temp 40 Degrees C CW/CCW Motor Shaft Rotation Overall Length 14-3/16 In. Motor Shaft Design Keyed
| Item | General Purpose Motor |
| Motor Application | General Application |
| Motor Design | Capacitor-Start/Run |
| Motor Enclosure Design | Open Dripproof |
| HP | 2 |
| Nameplate RPM | 1725 |
| Frame | 145TC |
| Voltage | 115/230 |
| Hz | 60 |
| Phase | 1 |
| Full Load Amps | 20.4/10.3-10.2 |
| No. of Speeds | 1 |
| Motor Mounting Type | Rigid Base |
| Motor Thermal Protection | None |
| Ins. Class | B |
| Motor Service Factor | 1.15 |
| Motor Bearings | Ball |
| Motor Frame Material | Rolled Steel |
| Max. Ambient Temp. | 40 Degrees C |
| Motor Shaft Rotation | CW/CCW |
| Shaft Dia. | 7/8 in |
| Shaft Length | 2 1/4 in |
| Length Less Shaft | 12 3/16 in |
| Overall Length | 14 3/16 in |
| Motor Shaft Design | Keyed |
| Standards | CSA, UL |
| Duty | Continuous |
| Motor Efficiency Group | Energy Efficient |
| Nominal Efficiency | 75.5 % |
| CC Number | CC031A |
| Includes | Conduit Box |
| Manufacturers Warranty Length | 1 yr |
