Bobrick B-2890 Jumbo-Roll Toilet Tissue Dispenser, Single

✅ Holds One 10” Jumbo Toilet Tissue Roll

✅ Key-Locking, Vandal-Resistant Design

✅ Sight Slot For Quick Refill Checks

✅ Removable Spindle Fits Multiple Core Sizes

The Bobrick B-2890 Surface-Mounted Single Jumbo-Roll Toilet Tissue Dispenser is an attractive round toilet paper dispenser that is perfect for mounting on the insides of bathroom stalls. The door of the dispenser is made from type-340, 20-gauge stainless steel with a satin finish that reflects light but resists fingerprinting. The mounting plate is crafted from thick, 16-gauge stainless steel with a powder-coated finish. On the door of the dispenser, a spring lock keeps the unit shut tightly to discourage theft. The inner spindle can hold a tube of toilet paper up to 10 inches in diameter with a maximum 3 inch core roll. Alternatively, you can remove the plastic adapter on the spindle to accommodate rolls with 1-5/8 inch cores. A window on the door makes it easy to monitor how much toilet paper is left inside of the dispenser, eliminating the need to unlock and open the door to determine if a refill is necessary. Satin Stainless Steel Surface-Mounted Single Jumbo-Roll Toilet Tissue Dispenser

Dimensions:
10 21/32 " Width
10 5/8" Height
4 1/2" Depth

Finish: Satin-Finish Stainless Steel
Mounting Options: Surface Mounted
Tissue Type: Jumbo Roll
Accessibility: ADA Compliant

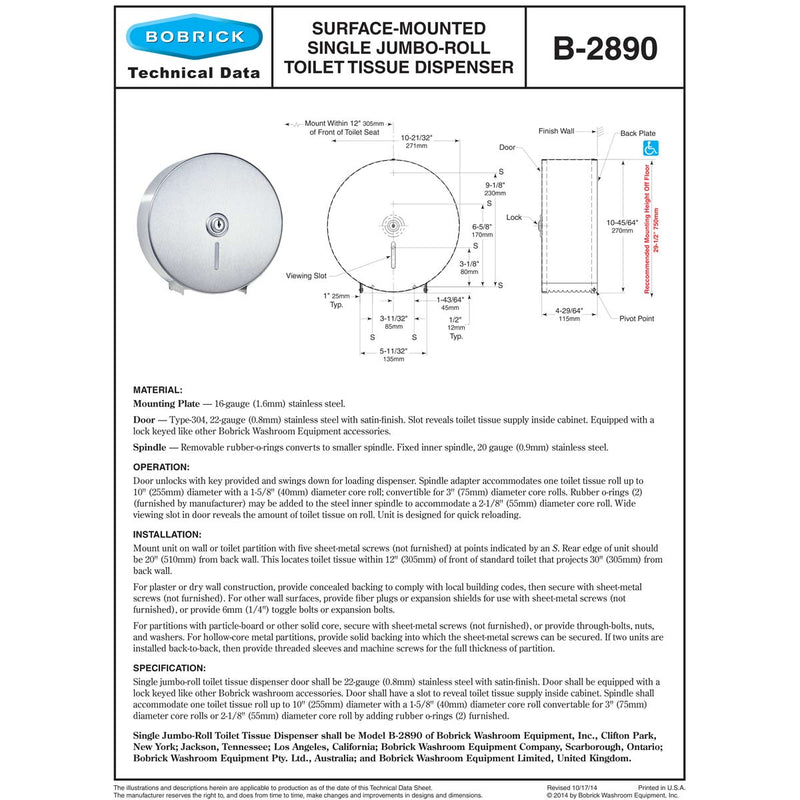

From Tech Data Sheet

MATERIALS: Mounting Plate — 16-gauge (1.6mm) stainless steel.
Door — Type-304, 22-gauge (0.8mm) stainless steel with satin-finish. Slot reveals toilet tissue supply inside cabinet. Equipped with a lock keyed like other Bobrick Washroom Equipment accessories.
Spindle — Removable rubber-o-rings converts to smaller spindle. Fixed inner spindle, 20 gauge (0.9mm) stainless steel.

OPERATION: Door unlocks with key provided and swings down for loading dispenser. Spindle adapter accommodates one toilet tissue roll up to 10" (255mm) diameter with a 1-1/2" (38mm) diameter core roll; convertible for 3" (76mm) diameter core rolls. Rubber o-rings (2) (furnished by manufacturer) may be added to the steel inner spindle to accommodate a 2-1/8" (55mm) diameter core roll. Wide viewing slot in door reveals the amount of toilet tissue on roll. Unit is designed for quick reloading.

INSTALLATION:

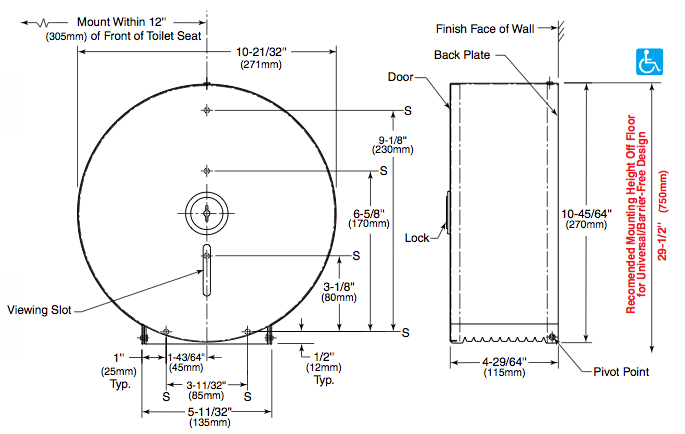

Mount unit on wall or toilet partition with sheet-metal screws at points indicated by an S. Rear edge of unit should be 20" (510mm) from back wall. This locates toilet tissue within 7"-9" (180-230mm) of front of standard toilet that projects 30" (305mm) from back wall. If required, washers can added to the lower mounting screw holes to increase the spacing between the bottom of the unit and the mounting wall or toilet partition panel.

For plaster or dry wall construction, provide concealed backing to comply with local building codes, then secure with sheet-metal screws (not furnished). For other wall surfaces, provide fiber plugs or expansion shields for use with sheet-metal screws (not furnished), or provide 6mm (1/4") toggle bolts or expansion bolts.

For partitions with particle-board or other solid core, secure with sheet-metal screws (not furnished), or provide through-bolts, nuts, and washers. For hollow-core metal partitions, provide solid backing into which the sheet-metal screws can be secured. If two units are installed back-to-back, then provide threaded sleeves and machine screws for the full thickness of partition.

SPECIFICATION:
Single jumbo-roll toilet tissue dispenser door shall be 22-gauge (0.8mm) stainless steel with satinfinish. Door shall be equipped with a lock keyed like other Bobrick washroom accessories. Door shall have a slot to reveal toilet tissue supply inside cabinet. Spindle shall accommodate one toilet tissue roll up to 10" (255mm) diameter with a 1-1/2" (38mm) diameter core roll convertable for 3" (76mm) diameter core rolls or 2-1/8" (55mm) diameter core roll by adding rubber o-rings (2) furnished.
