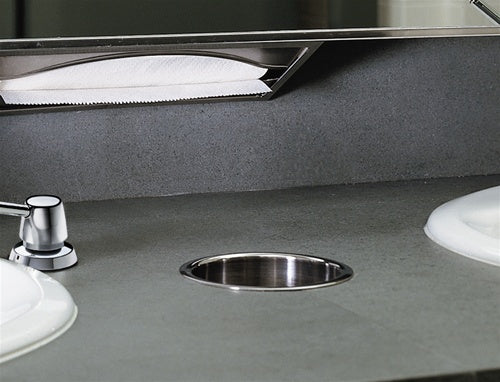

Bobrick B-529 Circular Waste Chute for Countertops

The Bobrick B-529 Circular Waste Chute is an attractive, surface-mounted waste receptacle that guides trash downward into your awaiting waste container (not included) to keep messes hidden away and counter tops looking spotless. The exposed surfaces of the chute have a glossy, shiny silver tone appearance, which enhances the look of the sink area in which it is installed even more. The chute requires a hole approximately 5-5/8 inches in diameter, but has a 1/16 of an inch allowance. Once placed in the hole, the chute can be sealed in place with any silicone sealant in order to prevent theft and keep the chute from shifting and moving when waste is dropped into its opening. The inside diameter of the tube is 5-7/16 inches, and the unit is 5 inches in length. Crafted from type-300 stainless steel, the piece is 24 gauge (6 mm thick).



MATERIALS:
Circular Waste Chute — Type-300, 24-gauge (0.6mm) stainless steel. Exposed surfaces have bright polished finish.

INSTALLATION:
Unit is designed for installation in 5-5/8" ± 1/16" (140 ± 1.5mm) diameter hole in any countertop. To install unit permanently in place, cut hole in countertop. Fill in underside of waste chute lip and around portion of waste chute body which protrudes down into mounting hole with silicone sealant (not furnished). Install unit into countertop hole. Once unit is in place, wipe off any excess glue with a clean rag.

SPECIFICATION:
Circular waste chute for mounting in countertops shall be type-300 stainless steel with 5-7/16" (135mm) inside diameter, rolled lip and bright polished finish on exposed surfaces. Waste chute opening shall provide access to deposit waste into waste receptacle (not furnished) placed under the countertop.
