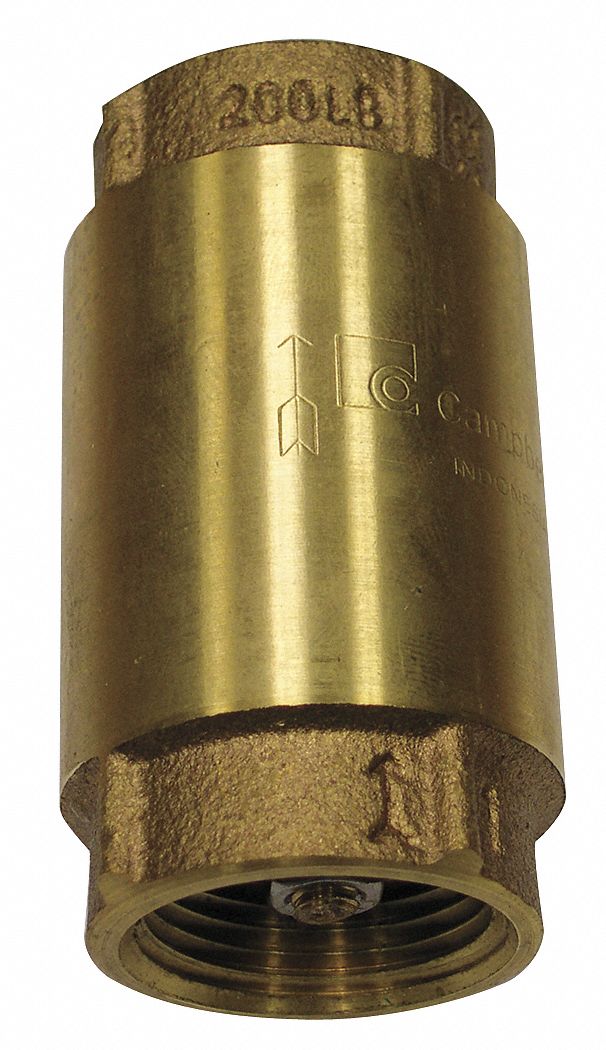

Item - Check Valves: Check Valve; Flow Design: Single; Mechanism and Body Design: Inline Spring; Body Material - Valves: Brass; Pipe or Tube Size - Check Valves: 3/4 in; Connection Type - Check Valves: FNPT x FNPT; Cracking Pressure - Check Valves: 0.5 psi; Mounting Orientation - Check Valves: Horizontal, Vertical; Seal Material - Check Valves: NBR; Max. Temp. - Valves: 158 Degrees F; Min. Temp. - Valves: 35 Degrees F; Max. Water Pressure - Valves: 200 psi; Max. Steam Pressure - Valves: Not Rated; Seat Material - Check Valves: Bronze; Spring Material - Check Valves: Stainless Steel; Flow - Valves: 13 gpm; Full Flow - Valves: No; Application - Valves: General Purpose; Length: 3 in; Width: 1 1/2 in; Overall Height: 1 1/2 in; Standards: ASTM B62
| Item - Check Valves | Check Valve |
| Flow Design | Single |
| Mechanism and Body Design | Inline Spring |
| Body Material - Valves | Brass |
| Pipe or Tube Size - Check Valves | 3/4 in |
| Connection Type - Check Valves | FNPT x FNPT |
| Cracking Pressure - Check Valves | 0.5 psi |
| Mounting Orientation - Check Valves | Horizontal, Vertical |
| Seal Material - Check Valves | NBR |
| Max. Temp. - Valves | 158 Degrees F |
| Min. Temp. - Valves | 35 Degrees F |
| Max. Water Pressure - Valves | 200 psi |
| Max. Steam Pressure - Valves | Not Rated |
| Seat Material - Check Valves | Bronze |
| Spring Material - Check Valves | Stainless Steel |
| Flow - Valves | 13 gpm |
| Full Flow - Valves | No |
| Application - Valves | General Purpose |
| Length | 3 in |
| Width | 1 1/2 in |
| Overall Height | 1 1/2 in |
| Standards | ASTM B62 |
