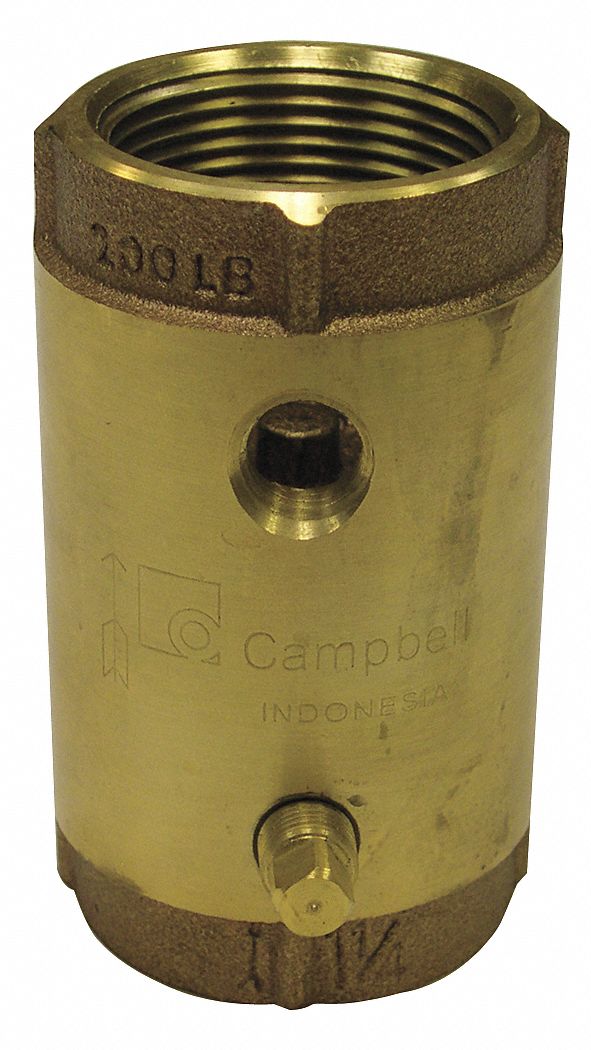

Campbell Check Valve, 1 in, Single, Inline Spring with Tap, Brass, FNPT x FNPT - CVB-4TLF

CampbellSKU: C1910686
MPN : CVB-4TLF
Weight : 1.05 lb

filler

Price:
$37.27 $60.11

Availability : Usually Ships in 3 Business Days

Item - Check Valves: Check Valve; Flow Design: Single; Mechanism and Body Design: Inline Spring with Tap; Body Material - Valves: Brass; Pipe or Tube Size - Check Valves: 1 in; Connection Type - Check Valves: FNPT x FNPT; Cracking Pressure - Check Valves: 0.5 psi; Mounting Orientation - Check Valves: Horizontal, Vertical; Seal Material - Check Valves: NBR; Max. Temp. - Valves: 158 Degrees F; Min. Temp. - Valves: 35 Degrees F; Max. Water Pressure - Valves: 200 psi; Max. Steam Pressure - Valves: Not Rated; Seat Material - Check Valves: Bronze; Spring Material - Check Valves: Stainless Steel; Flow - Valves: 18 gpm; Full Flow - Valves: No; Application - Valves: General Purpose; Length: 3 1/2 in; Width: 1 3/4 in; Overall Height: 1 3/4 in; Standards: ASTM B62

Item - Check ValvesCheck Valve
Flow DesignSingle
Mechanism and Body DesignInline Spring with Tap
Body Material - ValvesBrass
Pipe or Tube Size - Check Valves1 in
Connection Type - Check ValvesFNPT x FNPT
Cracking Pressure - Check Valves0.5 psi
Mounting Orientation - Check ValvesHorizontal, Vertical
Seal Material - Check ValvesNBR
Max. Temp. - Valves158 Degrees F
Min. Temp. - Valves35 Degrees F
Max. Water Pressure - Valves200 psi
Max. Steam Pressure - ValvesNot Rated
Seat Material - Check ValvesBronze
Spring Material - Check ValvesStainless Steel
Flow - Valves18 gpm
Full Flow - ValvesNo
Application - ValvesGeneral Purpose
Length3 1/2 in
Width1 3/4 in
Overall Height1 3/4 in
StandardsASTM B62
