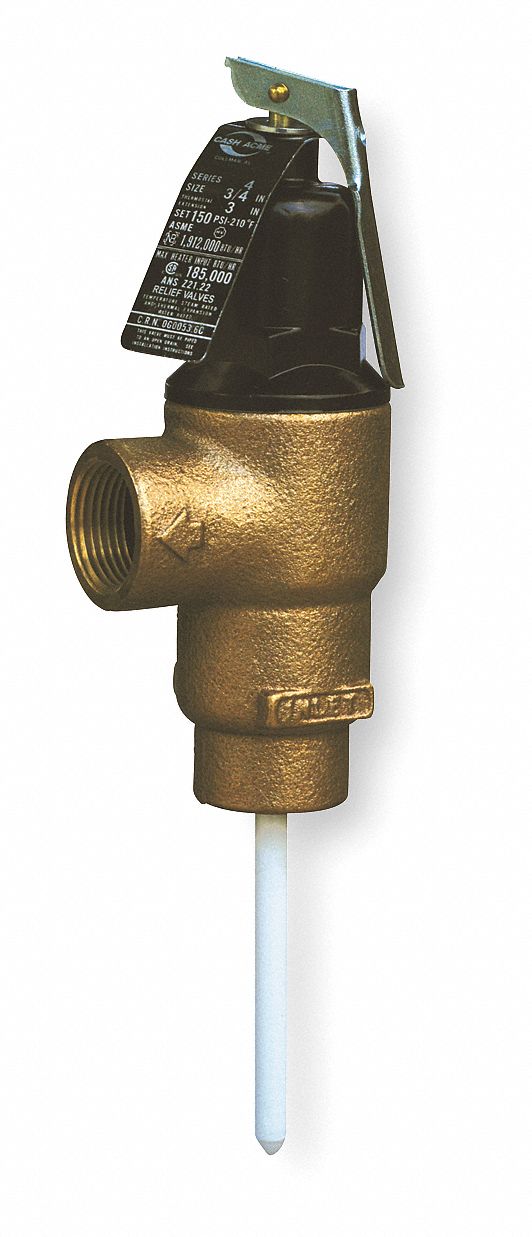

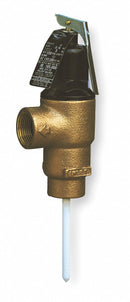

Cash Acme Temperature and Pressure Relief Valve, 1,912,000 BtuH, 150 psi, 2 7/8 in Thermostat Length - FVX-3C

Cash AcmeSKU: C1932163
MPN : FVX-3C
Weight : 1.4 lb
filler

Price:
$160.29 $195.48

Availability : Usually Ships in 1-3 Business Days

Temperature and Pressure Relief Valve; Inlet Type: FNPT; Outlet Type: FNPT; Inlet Size: 3/4 in; Outlet Size: 3/4 in; Thermostat Length: 2 7/8 in; Body Height: 5 9/16 in; BtuH: 1,912,000; Factory Set Pressure: 150 psi; Max. Temp.: 210 Degrees F; Shank Length: Standard; Auto Re-Seating: Yes; Body Material: Bronze; Spring Material: Stainless Steel; Body Width: 2 1/2 in; Standards: CSA, CSA 4.4, Certified ANSI Z21.22, Listed By ASME

ItemTemperature and Pressure Relief Valve
Inlet TypeFNPT
Outlet TypeFNPT
Inlet Size3/4 in
Outlet Size3/4 in
Thermostat Length2 7/8 in
Body Height5 9/16 in
BtuH1,912,000
Factory Set Pressure150 psi
Max. Temp.210 Degrees F
Shank LengthStandard
Auto Re-SeatingYes
Body MaterialBronze
Spring MaterialStainless Steel
Body Width2 1/2 in
StandardsCSA, CSA 4.4, Certified ANSI Z21.22, Listed By ASME
