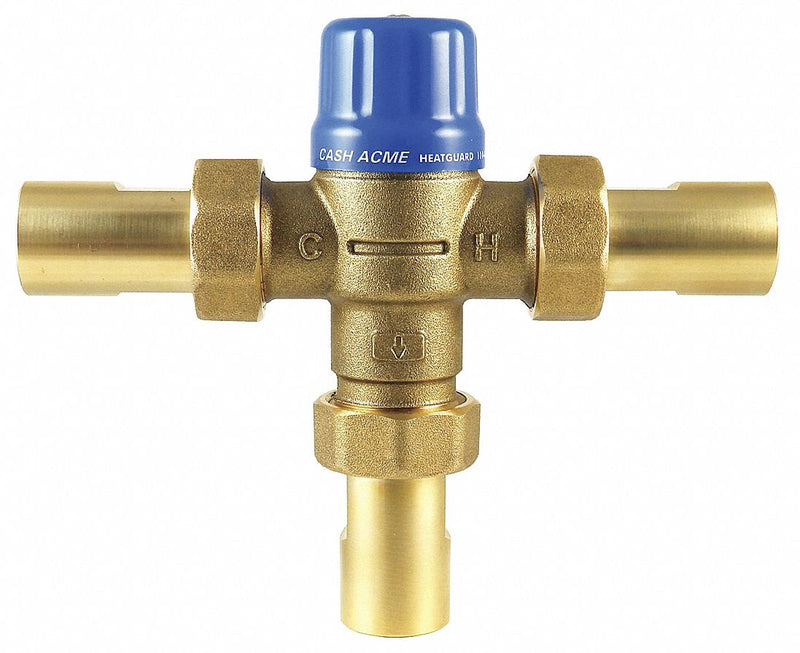

Cash Acme 3/4 in NPT Inlet Type Thermostatic Mixing Valve, Bronze - HG110D

Cash AcmeSKU: C1931496
MPN : HG110D
Weight : 2.32 lb


$122.46 $149.34

Availability : Usually Ships in 10-15 Business Days

This hot water temperature control valve is specifically designed for mixing cold and hot water on hot water supply systems. Features a locking mechanism to help prevent unwanted adjustment. Can be used for various applications to reduce the temperature of hot water from the system and is ideal for radiant heat applications. Can be used in under-the-sink applications to help prevent scalding in commercial and residential applications. Certified for use in potable water applications.

ItemThermostatic Mixing Valve
Body MaterialBronze
Inlet TypeNPT
Outlet TypeNPT
Inlet Size3/4 in
Outlet Size3/4 in
Temp. Range85 Degrees to 130 Degrees F
Max. Pressure230 psi
Overall Height2 5/32 in
Overall Width5 5/8 in
ComplianceASSE 1017, ASSE 1069, ASSE 1070, CSA B125.3, NSF 372, NSF 64
