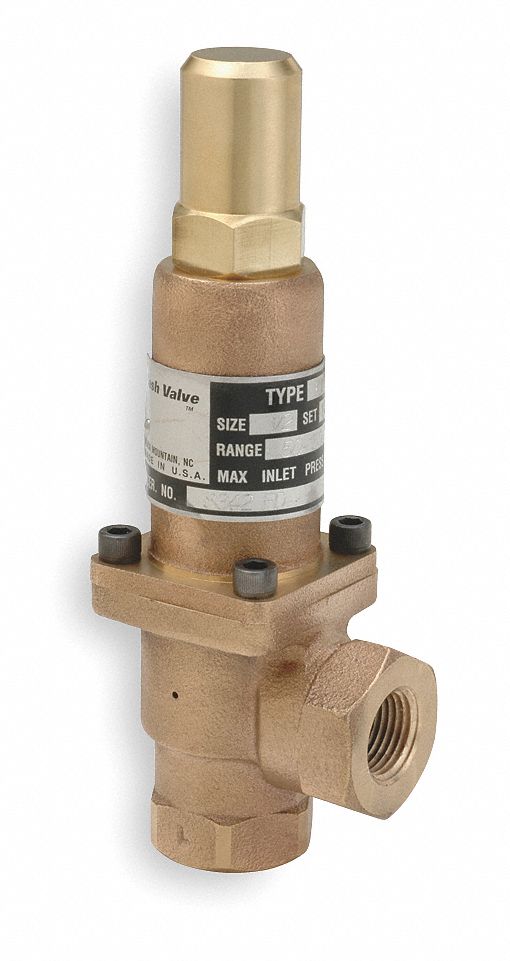

Cash Valve Bronze Adjustable Back Pressure Relief Valve, FNPT Inlet Type, FNPT Outlet Type - 11840-0050MC
filler
Availability : Usually Ships in 42 Business Days
Adjustable Back Pressure Relief Valve; Body Material: Bronze; Inlet Type: FNPT; Outlet Type: FNPT; Inlet Size: 3/8 in; Outlet Size: 3/8 in; Factory Set Pressure: 50 psi; Disc Material: Metal; Overall Height: 5 1/4 in; Application: Liquids; Overall Length: 2 1/2 in; Seat Material: Bronze; Spring Material: Stainless Steel; Temp. Range: 40 Degrees to 450 Degrees F; Test Lever: No; Standards: ASME Section IV, CRN, CSA
| Item | Adjustable Back Pressure Relief Valve |
| Body Material | Bronze |
| Inlet Type | FNPT |
| Outlet Type | FNPT |
| Inlet Size | 3/8 in |
| Outlet Size | 3/8 in |
| Factory Set Pressure | 50 psi |
| Disc Material | Metal |
| Overall Height | 5 1/4 in |
| Application | Liquids |
| Overall Length | 2 1/2 in |
| Seat Material | Bronze |
| Spring Material | Stainless Steel |
| Temp. Range | 40 Degrees to 450 Degrees F |
| Test Lever | No |
| Standards | ASME Section IV, CRN, CSA |
