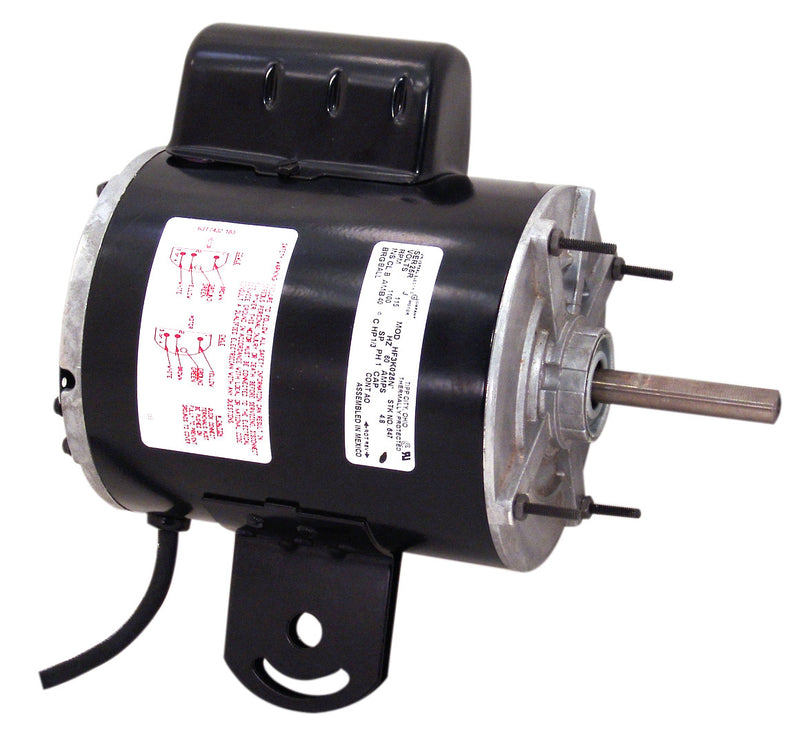

Century AO Smith 969A Pedistal Fan Motor, 1/2 HP, PSC, 840 RPM, 115, 230V, 48Y Frame

CenturySKU: c2090542
MPN : 969A
Weight : 15.0 lb
filler

Price:
$431.41 $526.11

Availability : Usually Ships in 3-5 Business Days
  • Features: Yoke mount, 40 degree C ambient, 1" thru-bolts, Gasketed conduit box

Item: Pedestal Fan Motor, Motor Type: PSC, HP: 1/2, Nameplate RPM: 840, Voltage: 115/230, Frame: 48Y, Enclosure: Totally Enclosed, Rotation: CW, Hz: 60, Phase: 1, Speeds: 1, Bearings: Sleeve, Shaft Type: Flat, Shaft Number: 1, Shaft Length: 2.625", Shaft Dia.: 0.625", "C" Dim: 11, Protection: Auto, Thermal Protection: Yes, Cooling: Air Over.

ItemPedestal Fan Motor
Motor TypePSC
HP1/2
Nameplate RPM840
Voltage115/230
Frame48Y
EnclosureTotally Enclosed
RotationCW
Hz60
Phase1
Speeds1
BearingsSleeve
Shaft TypeFlat
Shaft Number1
Shaft Length2.625"
Shaft Dia.0.625"
"C" Dim11
ProtectionAuto
Thermal ProtectionYes
CoolingAir Over
