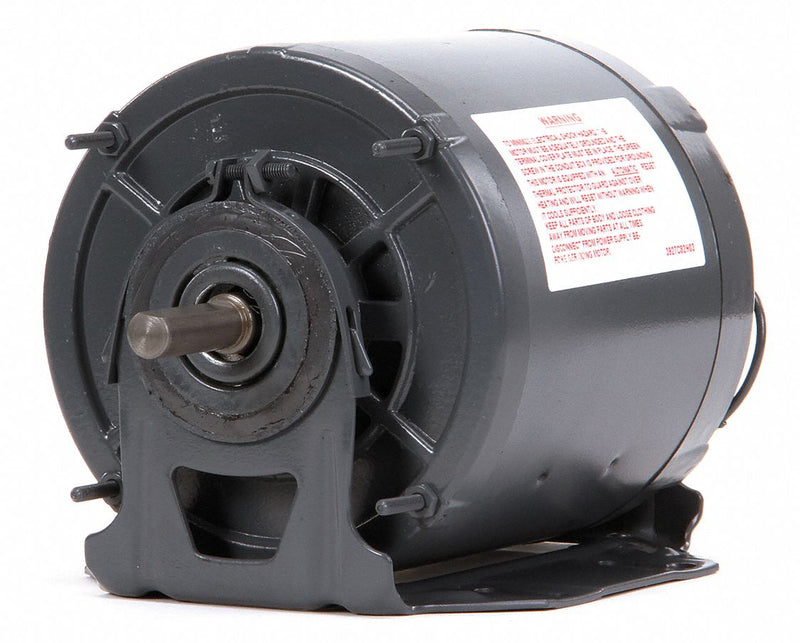

Century 1/6 HP Direct Drive Blower Motor, Split-Phase, 1725 Nameplate RPM, 115/208-230 Voltage, Frame 48Y - ARB2014L

CenturySKU: C2763143
MPN : ARB2014L
Weight : 14.17 lb
filler

Price:
$242.59 $295.84

Availability : Usually Ships Within 5-7 Business Days

This CENTURY energy-efficient direct drive blower motor features extended studs for mounting fan guard on shaft endshield.,Suitable for use in dusty, dirty, nonhazardous locations,Can be used in exhaust fans, air circulators, and other air-over fan applications

ItemDirect Drive Blower Motor
Motor ApplicationHVAC/R
Motor Sub ApplicationDirect Drive Fan/Blower
Motor DesignSplit-Phase
Motor Enclosure DesignTotally Enclosed Air-Over
HP1/6
Nameplate RPM1725
Voltage115/208-230
Full Load Amps2.8/1.4-1.4
Hz60
Phase1
Frame48Y
Motor Service Factor1
Max. Ambient Temp.40 Degrees C
Ins. ClassB
DutyContinuous
No. of Speeds1
Motor Mounting TypeCradle Base
Motor Mounting PositionHorizontal
Motor BearingsBall
Motor Thermal ProtectionAuto
Motor Shaft RotationCW/CCW
Body Dia.5 5/8 in
Length Less Shaft7 3/8 in
Overall Length8 7/8 in
Shaft Dia.1/2 in
Shaft Length1 1/2 in
Motor Shaft DesignFlat
Capacitor RequiredNo
Resilient Ring Dia.2 1/2 in
Ring to Ring Center6 3/4 in
Mounting Stud LocationShaft End
Mounting Stud Pattern3-5/8 in x 3-5/8 in
Stud Size#8-32
Mounting Stud Length3/4 in
Bolt Circle Dia.5 3/16 in
StandardsCSA Certified, UL Recognized
ApplicationBlowers, Fans and Air Circulators
Manufacturers Warranty Length1 yr
IncludesResilient Base
