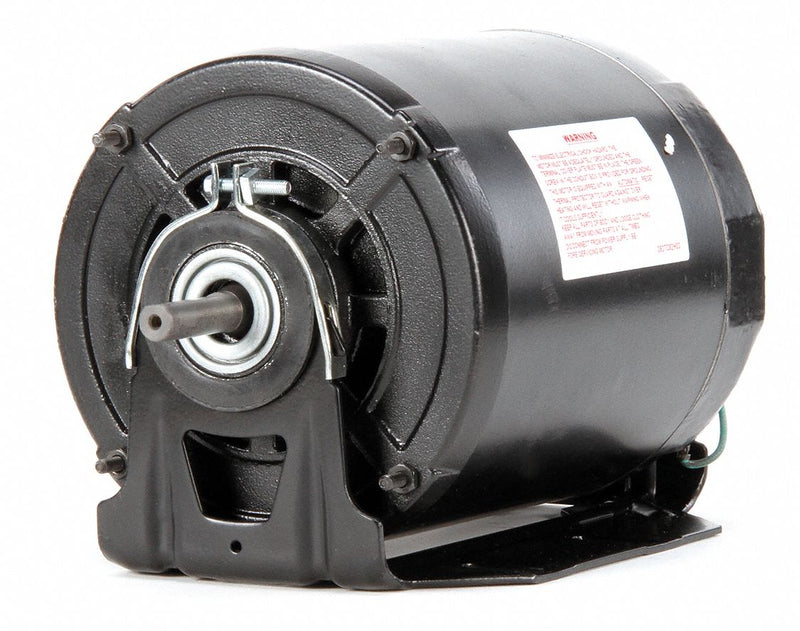

Energy-efficient motor features extended studs for mounting fan guard on shaft endshield For use in exhaust fans, air circulators, and other air-over fan applications. Ideal for dusty, dirty, nonhazardous locations.
| Item | Direct Drive Blower Motor |
| Motor Application | HVAC/R |
| Motor Sub Application | Direct Drive Fan/Blower |
| Motor Design | Split-Phase |
| Motor Enclosure Design | Totally Enclosed Air-Over |
| HP | 1/3; 1/9 |
| Nameplate RPM | 1725/1140 |
| Voltage | 115 |
| Full Load Amps | 5.5/4 |
| Hz | 60 |
| Phase | 1 |
| Frame | 56Z |
| Motor Service Factor | 1 |
| Max. Ambient Temp. | 40 Degrees C |
| Ins. Class | B |
| Duty | Continuous |
| No. of Speeds | 2 |
| Motor Mounting Type | Cradle Base |
| Motor Mounting Position | Horizontal |
| Motor Bearings | Ball |
| Motor Thermal Protection | Auto |
| Motor Shaft Rotation | CW/CCW |
| Body Dia. | 6 1/2 in |
| Length Less Shaft | 9 3/8 in |
| Overall Length | 11 in |
| Shaft Dia. | 1/2 in |
| Shaft Length | 1 5/8 in |
| Motor Shaft Design | Flat |
| Capacitor Required | No |
| Resilient Ring Dia. | 2 1/2 in |
| Ring to Ring Center | 8 7/8 in |
| Mounting Stud Location | Shaft End |
| Mounting Stud Pattern | 4-1/8 in x 4-1/8 in |
| Stud Size | #10-32 |
| Mounting Stud Length | 1/2 in |
| Bolt Circle Dia. | 5 13/16 in |
| Standards | CSA Certified (LR43341), UL Recognized |
| Application | Blowers, Fans and Air Circulators |
| Manufacturers Warranty Length | 1 yr |
| Includes | 5/8 in dia S |
