- Features: 40 degree C ambient

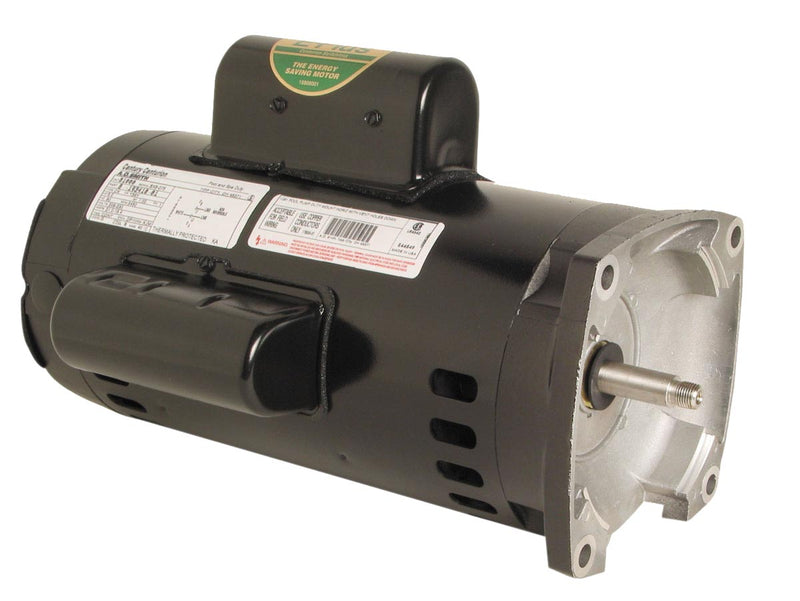

Item: Square Flange Pool Pump Motor, Motor Type: Capacitor-Start, HP: 5, Nameplate RPM: 3450, Voltage: 208-230, Frame: 56Y, Enclosure: Drip Proof, Rotation: CCW, Hz: 60, Phase: 1, Speeds: 1, Insulation Class: B, Bearings: Ball, Base: None, Shaft Type: Threaded, Shaft Number: 1, Shaft Length: 1.875", Shaft Dia.: 0.625", "C" Dim: 14.9, Protection: None, Thermal Protection: No, Cooling: Ambient.
| Item | Square Flange Pool Pump Motor |
| Motor Type | Capacitor-Start |
| HP | 5 |
| Nameplate RPM | 3450 |
| Voltage | 208-230 |
| Frame | 56Y |
| Enclosure | Drip Proof |
| Rotation | CCW |
| Hz | 60 |
| Phase | 1 |
| Speeds | 1 |
| Insulation Class | B |
| Bearings | Ball |
| Base | None |
| Shaft Type | Threaded |
| Shaft Number | 1 |
| Shaft Length | 1.875" |
| Shaft Dia. | 0.625" |
| "C" Dim | 14.9 |
| Protection | None |
| Thermal Protection | No |
| Cooling | Ambient |
