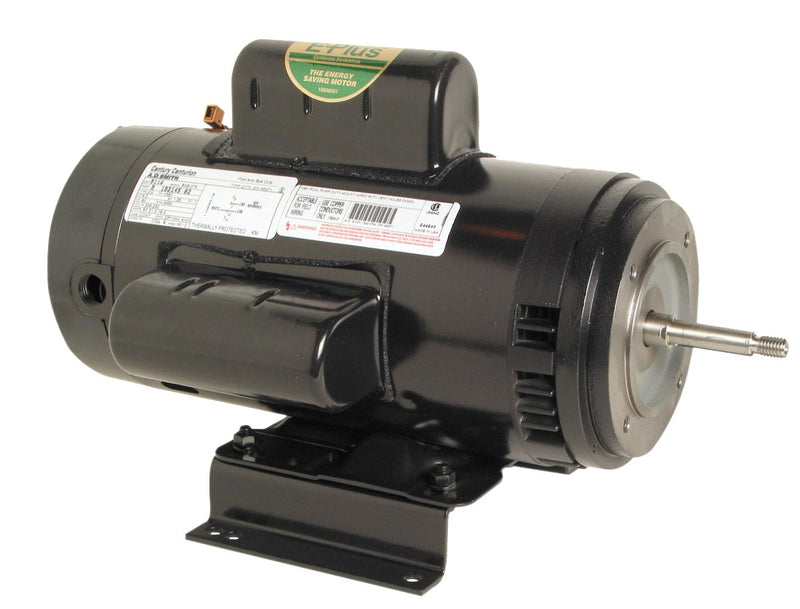

Century AO Smith B116 C-Face Pool Motor, 4 HP, PSC, 3450 RPM, 208-230V, 56Y Frame

CenturySKU: c2091010
MPN : B116
Weight : 15.0 lb
filler

Price:
$874.53 $1,066.50

Availability : Usually Ships in 3-5 Business Days
  • Features: 40 degree C ambient, 304 bearing shaft end, Speck pump replacement

Item: Pool and Spa Pump Motor, Motor Type: PSC, HP: 4, Nameplate RPM: 3450, Voltage: 208-230, Frame: 56Y, Enclosure: Drip Proof, Rotation: CW, Hz: 60, Phase: 1, Speeds: 1, Service Factor: 1.25, Insulation Class: B, Bearings: Ball, Base: Rigid, Shaft Type: Special, Shaft Number: 1, Shaft Length: 1.875", Shaft Dia.: 0.625", "C" Dim: 16.78, Protection: Manual, Thermal Protection: Yes, Cooling: Ambient.

ItemPool and Spa Pump Motor
Motor TypePSC
HP4
Nameplate RPM3450
Voltage208-230
Frame56Y
EnclosureDrip Proof
RotationCW
Hz60
Phase1
Speeds1
Service Factor1.25
Insulation ClassB
BearingsBall
BaseRigid
Shaft TypeSpecial
Shaft Number1
Shaft Length1.875"
Shaft Dia.0.625"
"C" Dim16.78
ProtectionManual
Thermal ProtectionYes
CoolingAmbient
