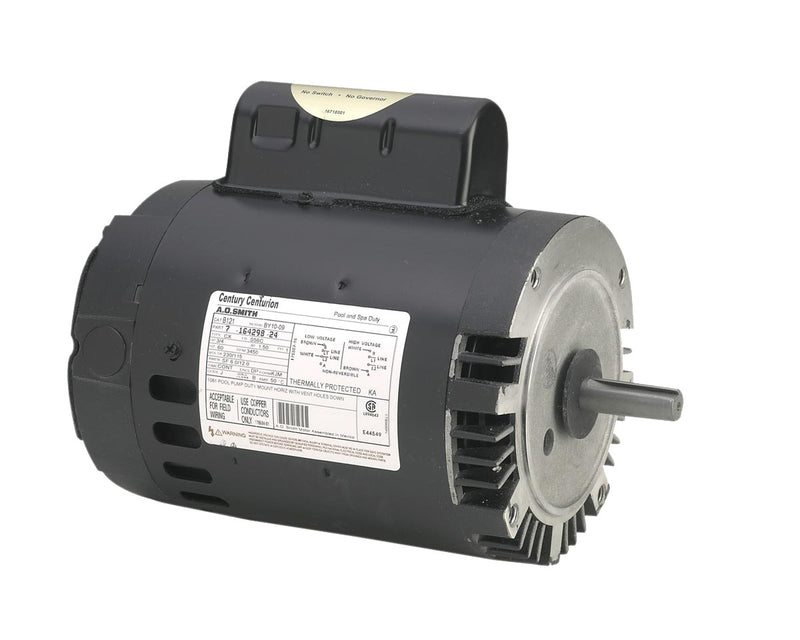

Century AO Smith B120 C-Face Pool Motor, 1/2 HP, PSC, 3450 RPM, 115. 230V, 56C Frame

CenturySKU: c2091005
MPN : B120
Weight : 15.0 lb
filler

Price:
$234.87 $286.43

Availability : Usually Ships in 3-5 Business Days
  • Features: 50 degree C ambient, 304 bearing shaft end, Meets California efficiency standards

Item: Pool and Spa Pump Motor, Motor Type: PSC, HP: 1/2, Nameplate RPM: 3450, Voltage: 115. 230, Frame: 56C, Enclosure: Drip Proof, Rotation: CCW, Hz: 60, Phase: 1, Speeds: 1, Service Factor: 1.6, Insulation Class: B, Bearings: Ball, Base: None, Shaft Type: Key, Shaft Number: 1, Shaft Length: 1.875", Shaft Dia.: 0.625", "C" Dim: 11.44, Protection: Auto, Thermal Protection: Yes, Cooling: Ambient.

ItemPool and Spa Pump Motor
Motor TypePSC
HP1/2
Nameplate RPM3450
Voltage115. 230
Frame56C
EnclosureDrip Proof
RotationCCW
Hz60
Phase1
Speeds1
Service Factor1.6
Insulation ClassB
BearingsBall
BaseNone
Shaft TypeKey
Shaft Number1
Shaft Length1.875"
Shaft Dia.0.625"
"C" Dim11.44
ProtectionAuto
Thermal ProtectionYes
CoolingAmbient
