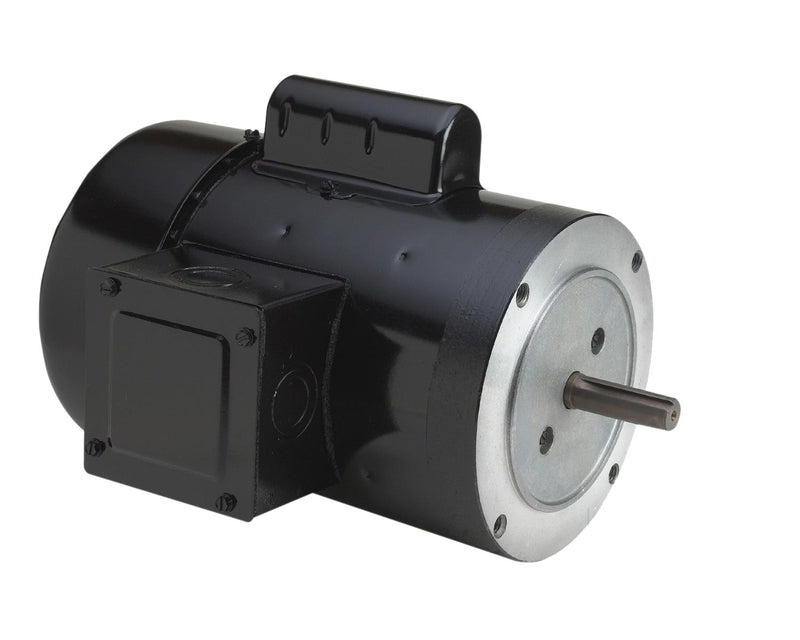

Century AO Smith B519 Cap Start C-Face Motor, 1/2 HP, 3450 RPM, 115, 208-230V, 56C Frame

CenturySKU: c2091236
MPN : B519
Weight : 15.0 lb

filler

Price:
$298.60 $364.15

Availability : Usually Ships in 3-5 Business Days
  • Features: 40 degree C ambient

Item: General Purpose AC Motor, Motor Type: Capacitor-Start, HP: 1/2, Nameplate RPM: 3450, Voltage: 115/208-230, Frame: 56C, Enclosure: Totally Enclosed, Rotation: CW/CCW, Hz: 60, Phase: 1, Speeds: 1, Service Factor: 1.15, Insulation Class: B, Bearings: Ball, Base: None, Shaft Type: Key, Shaft Number: 1, Shaft Length: 2.06", Shaft Dia.: 0.625", "C" Dim: 11.3, Protection: None, Thermal Protection: No, Cooling: Fan Cooled.

ItemGeneral Purpose AC Motor
Motor TypeCapacitor-Start
HP1/2
Nameplate RPM3450
Voltage115/208-230
Frame56C
EnclosureTotally Enclosed
RotationCW/CCW
Hz60
Phase1
Speeds1
Service Factor1.15
Insulation ClassB
BearingsBall
BaseNone
Shaft TypeKey
Shaft Number1
Shaft Length2.06"
Shaft Dia.0.625"
"C" Dim11.3
ProtectionNone
Thermal ProtectionNo
CoolingFan Cooled
