- Features: 40 degree C ambient, Stainless steel shaft, Weatherproof features for washdown, C-face end bracket

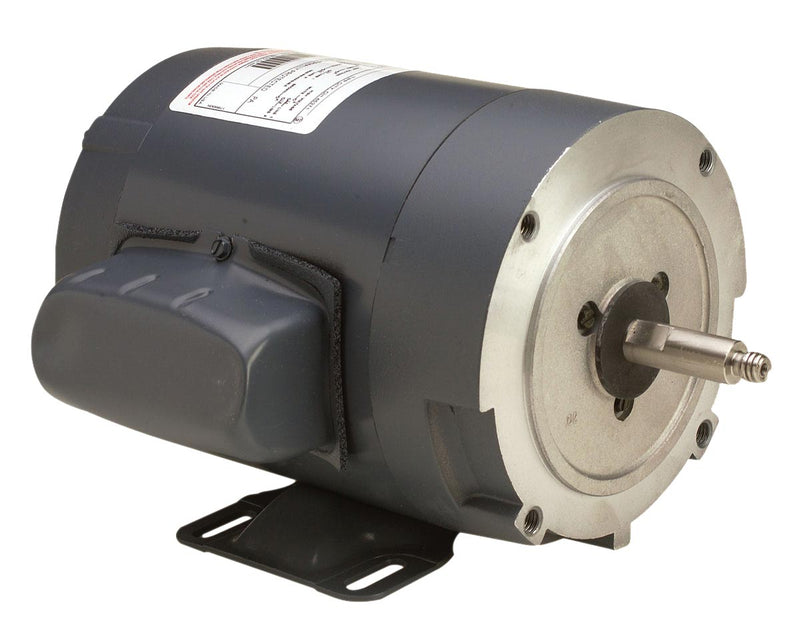

Item: Farm Duty Motor, Motor Type: PSC, HP: 1/2, Nameplate RPM: 3450, Voltage: 115/230, Frame: 56CZ, Enclosure: Totally Enclosed, Rotation: CCW, Hz: 60, Phase: 1, Speeds: 1, Insulation Class: B, Bearings: Ball, Base: Rigid, Shaft Type: Threaded, Shaft Number: 1, Shaft Length: 1.875", Shaft Height: 3.5", Shaft Dia.: 0.625", "C" Dim: 11.3, Protection: Auto, Thermal Protection: Yes, Cooling: Ambient.
| Item | Farm Duty Motor |
| Motor Type | PSC |
| HP | 1/2 |
| Nameplate RPM | 3450 |
| Voltage | 115/230 |
| Frame | 56CZ |
| Enclosure | Totally Enclosed |
| Rotation | CCW |
| Hz | 60 |
| Phase | 1 |
| Speeds | 1 |
| Insulation Class | B |
| Bearings | Ball |
| Base | Rigid |
| Shaft Type | Threaded |
| Shaft Number | 1 |
| Shaft Length | 1.875" |
| Shaft Height | 3.5" |
| Shaft Dia. | 0.625" |
| "C" Dim | 11.3 |
| Protection | Auto |
| Thermal Protection | Yes |
| Cooling | Ambient |
