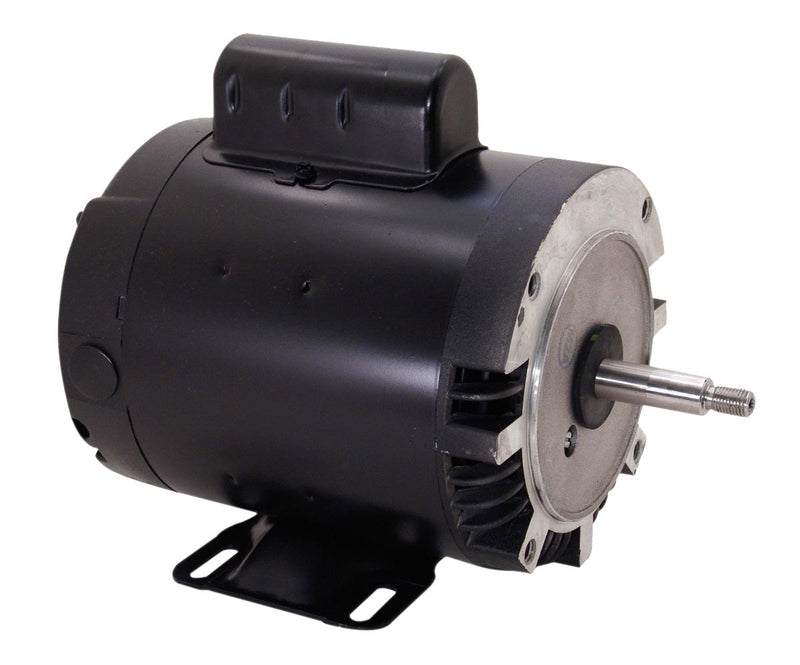

Century AO Smith B620 Cap Start C-Face Motor, 3/4 HP, 3600 RPM, 115, 230V, 56J Frame

CenturySKU: c2091228
MPN : B620
Weight : 15.0 lb

filler

Price:
$283.87 $346.18

Availability : Usually Ships in 3-5 Business Days
  • Features: 40 degree C ambient, Stainless steel threaded shaft for pump duty

Item: General Purpose AC Motor, Motor Type: Capacitor-Start, HP: 3/4, Nameplate RPM: 3600, Voltage: 115/230, Frame: 56J, Enclosure: Drip Proof, Rotation: CW, Hz: 60, Phase: 1, Speeds: 1, Service Factor: 1.5, Insulation Class: B, Bearings: Ball, Base: Rigid, Shaft Type: Threaded, Shaft Number: 1, Shaft Length: 1.875", Shaft Dia.: 0.625", "C" Dim: 11.8, Protection: Auto, Thermal Protection: Yes, Cooling: Ambient.

ItemGeneral Purpose AC Motor
Motor TypeCapacitor-Start
HP3/4
Nameplate RPM3600
Voltage115/230
Frame56J
EnclosureDrip Proof
RotationCW
Hz60
Phase1
Speeds1
Service Factor1.5
Insulation ClassB
BearingsBall
BaseRigid
Shaft TypeThreaded
Shaft Number1
Shaft Length1.875"
Shaft Dia.0.625"
"C" Dim11.8
ProtectionAuto
Thermal ProtectionYes
CoolingAmbient
