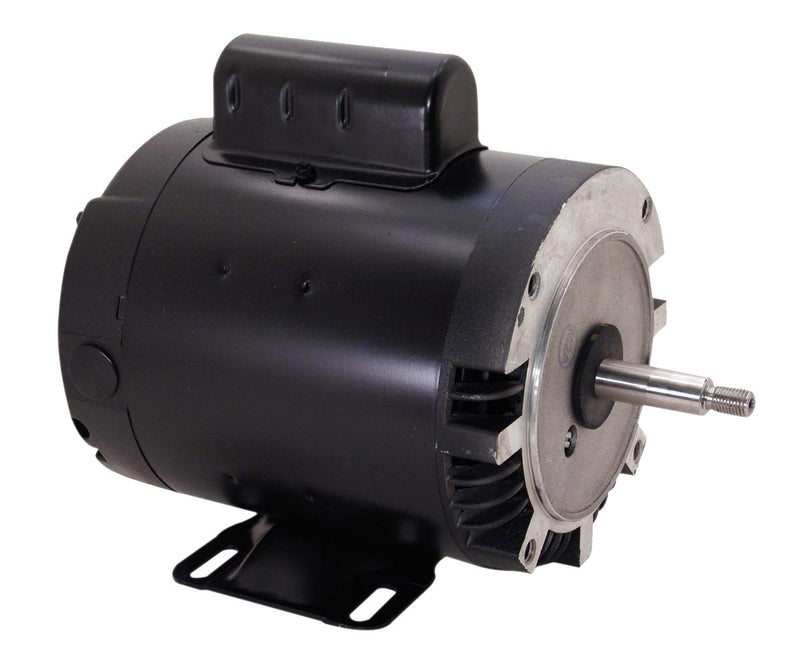

Century AO Smith B622 Cap Start C-Face Motor, 1 HP, 3600 RPM, 115, 230V, 56J Frame

CenturySKU: c2091230
MPN : B622
Weight : 15.0 lb
filler

Price:
$272.00 $331.71

Availability : Usually Ships in 3-5 Business Days
  • Features: 40 degree C ambient, Stainless steel threaded shaft for pump duty

Item: General Purpose AC Motor, Motor Type: Capacitor-Start, HP: 1, Nameplate RPM: 3600, Voltage: 115/230, Frame: 56J, Enclosure: Drip Proof, Rotation: CW, Hz: 60, Phase: 1, Speeds: 1, Service Factor: 1.4, Insulation Class: B, Bearings: Ball, Base: Rigid, Shaft Type: Threaded, Shaft Number: 1, Shaft Length: 1.875", Shaft Dia.: 0.625", "C" Dim: 12.1, Protection: Auto, Thermal Protection: Yes, Cooling: Ambient.

ItemGeneral Purpose AC Motor
Motor TypeCapacitor-Start
HP1
Nameplate RPM3600
Voltage115/230
Frame56J
EnclosureDrip Proof
RotationCW
Hz60
Phase1
Speeds1
Service Factor1.4
Insulation ClassB
BearingsBall
BaseRigid
Shaft TypeThreaded
Shaft Number1
Shaft Length1.875"
Shaft Dia.0.625"
"C" Dim12.1
ProtectionAuto
Thermal ProtectionYes
CoolingAmbient
