Availability : Usually Ships in 3-5 Business Days
- Features: 50 degree C ambient, Stainless steel shaft, 304 bearing shaft end, Energy efficient

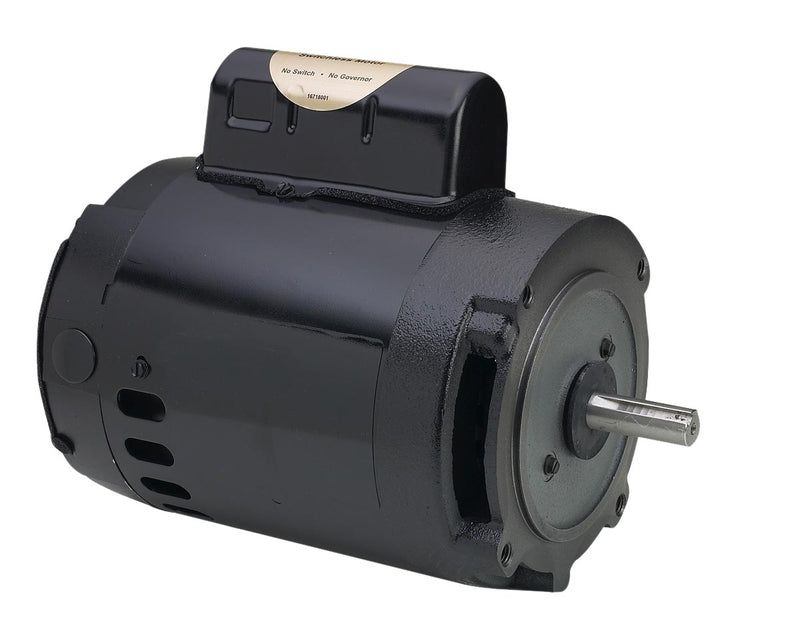

Item: Pool and Spa Pump Motor, Motor Type: PSC, HP: 3/4=, Nameplate RPM: 3450, Voltage: 115/208-230, Frame: 56C, Enclosure: Drip Proof, Rotation: CCW, Hz: 60, Phase: 1, Speeds: 1, Service Factor: 1.5, Insulation Class: B, Bearings: Ball, Base: None, Shaft Type: Key, Shaft Number: 1, Shaft Length: 1.875", Shaft Dia.: 0.625", "C" Dim: 12.62, Protection: Auto, Thermal Protection: Yes, Cooling: Ambient.
Item | Pool and Spa Pump Motor |
Motor Type | PSC |
HP | 3/4= |
Nameplate RPM | 3450 |
Voltage | 115/208-230 |
Frame | 56C |
Enclosure | Drip Proof |
Rotation | CCW |
Hz | 60 |
Phase | 1 |
Speeds | 1 |
Service Factor | 1.5 |
Insulation Class | B |
Bearings | Ball |
Base | None |
Shaft Type | Key |
Shaft Number | 1 |
Shaft Length | 1.875" |
Shaft Dia. | 0.625" |
"C" Dim | 12.62 |
Protection | Auto |
Thermal Protection | Yes |
Cooling | Ambient |
