- Cross Reference: Letro
- Features: 40 degree C ambient, Includes have aluminum adaptor bracket, Stainless steel shaft, Replaces Letro LA01 before March 1997

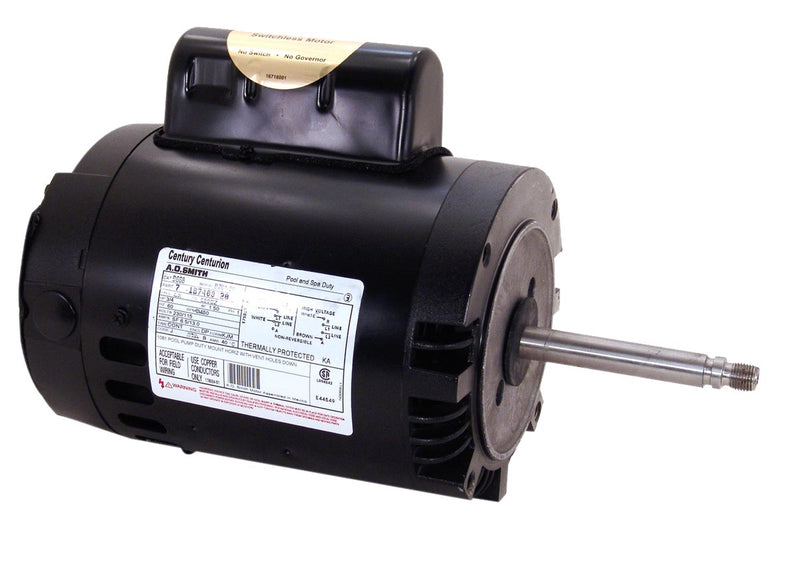

Item: Pool and Spa Pump Motor, Motor Type: PSC, HP: 3/4, Nameplate RPM: 3450, Voltage: 115/230, Frame: S56CZ, Enclosure: Totally Enclosed, Rotation: CW, Hz: 60, Phase: 1, Speeds: 1, Service Factor: 1.5, Insulation Class: B, Bearings: Ball, Base: Rigid, Shaft Type: Threaded, Shaft Number: 1, Shaft Length: 1.875", Shaft Height: 3.5", Shaft Dia.: 0.625", "C" Dim: 13.87, Protection: Auto, Thermal Protection: Yes, Cooling: Ambient.
| Item | Pool and Spa Pump Motor |
| Motor Type | PSC |
| HP | 3/4 |
| Nameplate RPM | 3450 |
| Voltage | 115/230 |
| Frame | 56Y |
| Enclosure | Totally Enclosed |
| Rotation | CW |
| Hz | 60 |
| Phase | 1 |
| Speeds | 1 |
| Service Factor | 1.5 |
| Insulation Class | B |
| Bearings | Ball |
| Base | Rigid |
| Shaft Type | Threaded |
| Shaft Number | 1 |
| Shaft Length | 1.875" |
| Shaft Height | 3.5" |
| Shaft Dia. | 0.625" |
| "C" Dim | 13.87 |
| Protection | Auto |
| Thermal Protection | Yes |
| Cooling | Ambient |
